Factory Hot Sales 1000 Ton Injection Molding Machine Price

Product Description

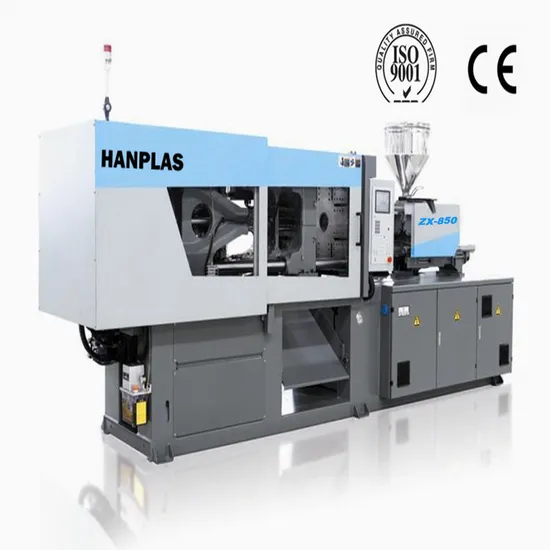

Zhengyue Factory Hot Sales 1000 Ton Injection Molding Machine Price
Features:
User friendly: Easy nozzle alignment after injection carriage improved. Easy care and maintenance.
Precision: high optimistic mechanical structure with high-tech controller, greatly increase machine service life and precise.
Speedy: High injection speed reducing cycle time.
Durable: Thicker platens to add strength, free from deforming molds.
Stable: dual cylinder injection, perform stability and reliability.

ZX-850	Injection Unit Date		A	B	C
	Screw diameter	mm	100	110	120
	Screw L/D ratio	/	22	20	20
	Theoretical shot volume	cm3	3848	4657	5542
	Shot weight(PS)	g	3541	4284	5098
	Injection rate	g/s	692	837	996
	Max.screw speed	rpm	125
	Clamping Unit
	Clamping force	KN	8500
	Toggle stroke	mm	1040
	Space bettween tie bars	mm	1000x1000
	Min.mold thickness	mm	400
	Max.mold thickness	mm	1000
	Hydraulic ejection stroke	mm	300
	Hydraulic ejection force	KN	181
	Others
	Hydraulic system pressure	Mpa	16
	Pump motor	kw	35+32+32
	Heating capacity	kw	58
	Oil tank capacity	L	1750
	Machine dimensions	m	12x2.5x3.3
	Machine weight	Ton	38

Dimension:
Zhengyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhengyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
Ningbo Zhengyue Machinery Co.,Ltd.
ADD: Room 507-508, No.39 Lane 158, Huangcheng West Road, Ningbo China.
Zip Code:315000
Tel: +86-574-87082687
