Low Wastage 11kv Power Distribution Transformer Power Supply, 3 Phase Step Down 11kv Voltage Distribution Oil Immersed Transformer

Product Description

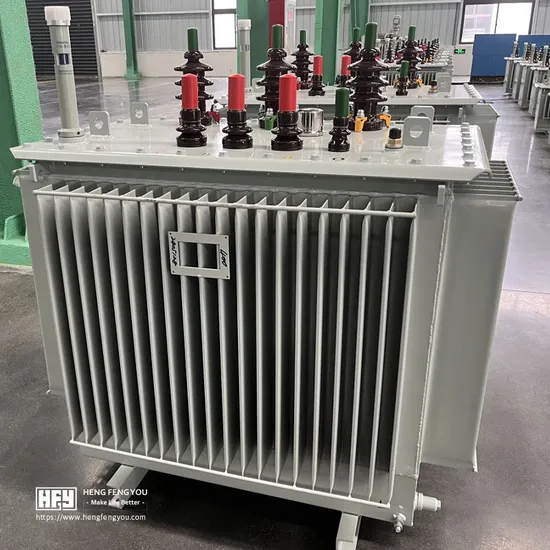

Low Wastage 11kv Power Distribution Transformer Power Supply,3 phase step down 11kv voltage distribution oil immersed Transformer
product introduction
...
The Oil Immersed transformer for sale is manufactured by Hengfengyou Electric,mainly used in 11kV urban distribution network, power supply and distribution system of industrial and mining enterprises and civil buildings. The high reliability of operation verification in more than 50 countries and regions around the world , has been sold to Tanzania, Zimbabwe, Ghana, South Africa, Kenya, Zambia, Sudan, Libya, Congo, Iraq, Syria, Bangladesh, and other countries and regions. CB, CCC, KEMA, EAC certification
-ISO9001 Certified Excellent Manufacturer
-30 years of transformer manufacturing experience
-Recognized by more than 50 countries and sold 32997 sets
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product features
...
* This model is produced in accordance with Chinese national GB standards and the international IEC standards.* It uses oil as the main insulation means of the transformer, and relies on oil as the cooling medium, such as oil-immersed natural cooling, oil-immersed air cooling, oil-immersed water cooling and forced oil circulation, etc.* The main components: iron core, winding, fuel tank, oil pillow, breathing apparatus, explosion-proof tube (pressure release valve), radiator, insulating casing, tap switch, gas relay, thermometer, oil purifier, etc.* Widely used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises, drilling platforms and oil production platforms; especially suitable for use in flammable, explosive and other harsh environments.

S11 Capacity	Rated voltage&Off-load tapping				Vector GroupSymbol		NO-load loss(W)	Load loss(W)	NO-load current(%)	Short circuit impedance(%)
	H.V(kv)	High pressure Tap range(%)		L.V(kv)
30 kva	11 10.5 10 6.3 6	±5% ±2x2.5%		0.4 0.415 0.420 0.430 0.440	Dyn11 Yyn0		100	630/600	1.5	4
50 kva							130	910/870	1.3	4
60 kva							150	1090/1040	1.2	4
75 kva							180	1310/1250	1.2	4
100 kva							200	1580/1500	1.1	4
125 kva							240	1890/1800	1.1	4
150 kva							280	2310/2200	1	4
200 kva							340	2730/2600	1	4
250 kva							400	3200/3050	0.9	4
300 kva							480	3830/3650	0.9	4
400 kva							570	4520/4300	0.8	4
500 kva							680	5410/5150	0.8	4
600 kva							810	6200	0.6	4.5
750 kva							980	7500	0.6	4.5
1000 kva							1150	10300	0.6	4.5
1250 kva							1360	12000	0.5	4.5
1500 kva							1640	14500	0.5	4.5
2000 kva							1940	18300	0.4	5
2500 kva							2290	21200	0.4	5

Product details
----------------------------------------------------------------------------------------------------------------------------------------------------------
company profile
...
HENGFENGYOU TRANSFORMERbelongs to HENGFENGYOU ELECTRIC Group, It is a power transformer products as the main business, set product research and development, design, production and sales of enterprises, designated suppliers for the world's top 500 enterprises. We are committed top roviding the best distribution transformer solutions for global customers.
Keyfigures
▪Founded:1990
▪2018 revenue: 635 million RMB
▪350 employees 30 electrical engineers
▪4 production locations in China (Qingdao, Liaocheng, Xuzhou, Shijiazhuang)
▪6% of revenues are invested in research and development
Power distribution solutions that drive the global energy transition
With energy demand expanding in both developed and emerging countries, the challenge for HENGFENGYOU Group is to connect energy with people. The group's teams work as closely as possible with projects and decision makers and design and propose technical and process solutions based on global user needs.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
>>>>>>>>>> Our factory MAKE LIFE BETTER
The HENGFENGYOU team achieves synergy with in the team to develop and produce specific solutions tha tmeet all customer needs.
Our equipment is designed and researched by R&D services according to each country's electrical standards and helps manage your distribution network for optimal efficiency.
HENGFENGYOU's state-of-the-art production workshop and production equipmentwill produce high quality products according to your specifications.
HENGFENGYOU has a certified quality control laboratory where electrical products are tested out of factory to ensure the reliability and optimal life of our products.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
>>>>>>>>>> Business Cooperation MAKE LIFE BETTER
Grow business with Hengfengyou
Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
>>>>>>>>>> Logistics delivery MAKE LIFE BETTER
certification >>>>>>>>>>>>
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q1: Is OEM/ODM available?
A1: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q2: What's your MOQ?
A2: One Set.
Q3: How is the delivery time?
A3: It depends your order quantity and it normally takes about 15-20 days.
Q4: How do you control the quality?
A4: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.
Q5: How long is the warranty?
A5: Within one year from the sale date, if there are any accessory problems, you just provide the photos of damaged accessory, then we will provide free accessory. According to the number of products, we will provide easily damaged accessories for free. We also can provide technical support if you need.v

---
