High-Efficiency Dual Station Blow Molding Machine for Bottles

Product Description

Products Description

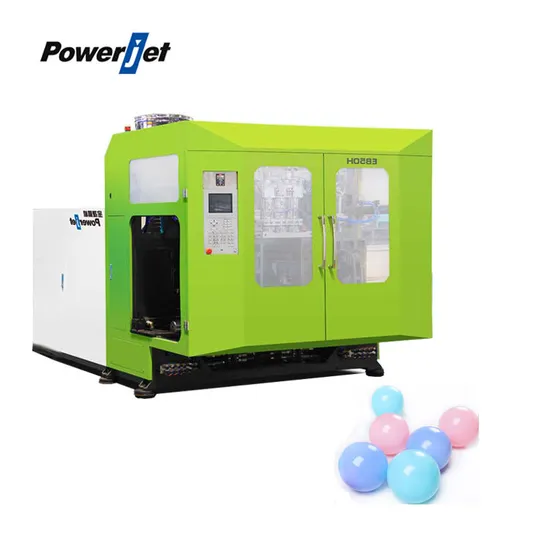

EXTRUSION BLOW MOLDING MACHINE HIGH-SPEED DOUBLE STATION EB50H.
Powerjet Double Station Extrusion Blow Molding Machine EB50U is specialized for manufacturing bottles and containers Max 5L.
Max Bottle Capacity - 5(L)
Clamping Force - 100(KN)
Extrusion Weight(HDPE) - 80(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor
oil bottles, etc.
Product Paramenters

Model			EB50H
Max. Product	L	5
Clamping Force	KN	86
Screw Diameter	mm	70
Screw L/D Ratio	L/D	25
Screw Rotary Speed	RPM	65
Extrusion Weight (HDPE)	kg	65
Extrusion Motor Power	KW	18.5
Pump Motor Power	KW	11
Heating Capacity	KW	17
Operation Pressure	Mpa	0.6~0.8
Air Consumption	m3/min	2.5
Cooling Water Consumption(25°c)	L/min	70
Machine Dimensions (LXWXH)	mm	3.7*2.8*2.3
Machine Weight	kg	6000

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
