Automatic Metal Y Axis Horizontal Metal Slant Bed CNC Lathe

Product Description

Product Description
The following is the detail of parameters of YE-46G for CNC machine equipment

technical specification				Machine configuration and selection
project	project	specification	unit	parets name	brand
journey	X-axis (diameter measure)	900	mm	numerical control system	KainDI K1000TF1i
	Z-axis	350	mm	Servo spindle drive	KainDI
workbench	workbench size (L * W)	680*200*30	mm	servo motor	KainDI
	T-slot ((Slot number * Slot width * slot distance)	3*20*50	mm	spindle units	Pengyou
	Maximum load of workbench	250	kg	Lead screw bearing	Haebin
principal axis	taper hole of spindle	40 °		lead screw	Qijian
	Spindle through hole diameter	Φ49		rail line	Taiwan
	Spindle chuck inner hole	Φ56		coupling	Aodisi
	Spindle head form	A2-5		illuminating system	LED
	Mainshaft tube	48*1.5		alarm light	Huanantiancheng
	Inside hole of bar material	Φ40		contactor (switch)	CHINT
	Clamping mode	hydraulic pressure		hydraulic pressure station	Xiaocun
	kind of drive	Belt drive/electric spindle
	speed of mainshaft	50-3500	rpm
motor	Synchronous spindle power	5.5	kw
	X-axis motor	6	nm	Machine picture (for reference only, subject to the actual)
	Z-axis motor	7.7	nm
feed	X/Z axis fast moving speed	20000	mm/min
	X/Z axis feed movement speed	20000	mm/min
	repeated accuracy	±0.003	mm
Other	Machine weight (KG)	2100	KG
	Machine floor area	2000*1450*1700	mm
	Air Pressure	0.4-0.8	Kg/cm2
	power capacity	7	KW

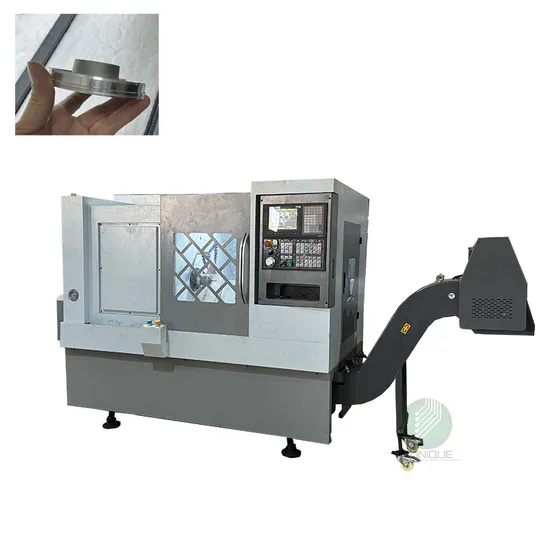

Figure 1-1 Appearance of the CNC machine (for reference only)
Figure 1-2 Appearance of the feeder (for reference only)
Figure 1-3 Appearance of the chip extractor (for reference only) Figure 1-4 Appearance of the throwing tool power head
(The actual object is for reference only)
Main Application

Company Profile
Certifications

Packaging & Shipping

FAQ
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 50% T/T in advance, 50% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: How can I get the quotation?
A:You can send the inquiry on made in china, or send email to us. It is better if you can tell what is your detailed requests. We will reply to you within 1 hour.

---
