Manufactured Agricultural Machinery Feed Granulator

Product Description

Product Description

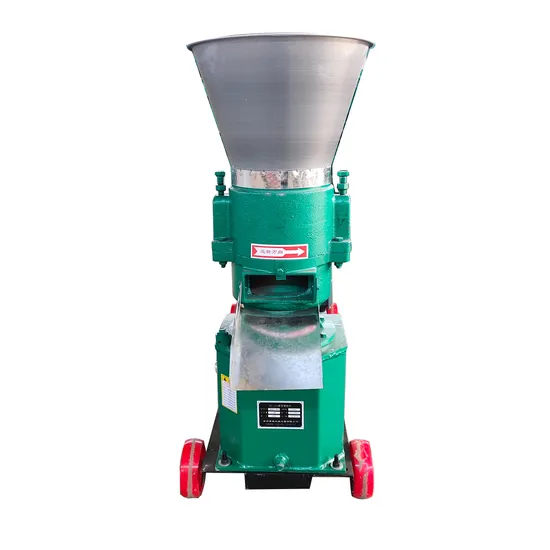

Manufactured Agricultural Machinery Feed Granulator
Poultry Animal feed pellet machine, also known as feed pellet making machine or poultry feed pellet making machine, is utilized to make crushed grain, grass and other animal feed materials into compacted cylindrical pellets to be used for feeding animals and poultries such as chicken, catfish, goat, cattle, rabbit, fish, dog, and so on. The size of fished animal feed pellets has various choices: 4, 6, 8, 10, 12mm, or other customized diameter. At the same time, you can customize the flat die of the animal feed pellet machine with different thickness and compression ratio to adapt to different materials and realize best pelleting result.

Product Parameters

productmodel	160-4	210-75	260-15	300-22
Yield (kg/h)	200.	300	400	800~1000
Materials.	Cast iron	Cast iron	Cast iron	cast iron
power(KW).	4.5	7.5	15	22
working voltage (V).	220	380	380	380
Package size(CM)	105X35X70	113X46X73	135X51x81	137X60X90
weight(KG)	About110	About144.	About260	about500
Pelleting diameter (mm).	2~10	2~10	2~10	2~10
Degree of grain maturation.	half-cooked	half-cooked	half-cooked	half-cooked
Suitable for.	Pig,cow,raise,rabbit,chicken,duck,goose,fish,shrimp,organic fertilizer
EXW Price(UsD/set)	395	598	898	1280

Packaging & Shipping

Installation Instructions
1.Used for making animal feed pellets.
2.Used for making wood pellets as fuel.

3.Raw material size need 3-5mm ; Humidity :10-12% .
Company Profile
We are at your service 24 hours a day
China Tianfeng Vibration Machinery Co., LTD., mainly to industrial and agricultural equipment development and production of the main factory, the factory features a variety of vibrating screening equipment, agricultural equipment, as well as customized production lines for customers, has been praised by customers in various countries!

FAQ
Question 1 : Does the pellet machine have any requirements for raw materials?
Answer: Grain materials do not need to be crushed, but forage and straw must be crushed before they can be processed. It is best to use powder materials because the particles made from powder materials are evenly nutritious.
Question 2 : Is the pellet machine dry in and out?
Answer: What we usually call dry-in and dry-out means that the raw materials can be processed directly. This is a
misunderstanding. It is not a real dry-in and dry-out, because the raw materials used contain a certain percentage of moisture, as long as the overall humidity is 10 Between %-15%, there is no need to add water, and it can be done directly. If the raw materials are very dry, you can spray a little water, a small amount, about 3%-5%, so that it can be formed well and will not affect storage.
Question 3 : Can we not use your motors and equip them locally?
Answer: Of course, it is convenient for maintenance in the future, and can save freight! But our price is not the price of the
motor! Our motors are 100% national standard copper core from regular manufacturers, the price is more expensive, and the quality Completely rest assured!

---
