US$318.00-478.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Cow/Sheep/Goat/Camel
Power Source
Electric Vacuum Pump
Certification
ISO9001:2008
Transport Package
Wooden Case
Specification
90*60*78/88*75*92cm
Production Capacity
10000
Product Description

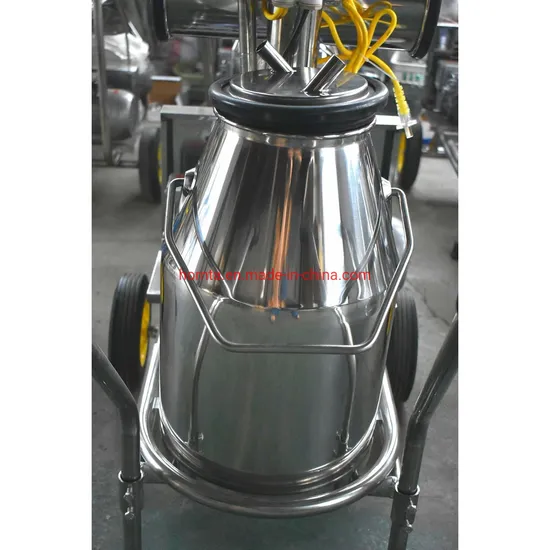

Electric vacuum pump Double barrel mobile milking machine
Main performance and technical parameters of vacuum pump single drum mobile milking machine.
According to the need number of barrels,Vacuum Pump Advanced Mobile Milking Machine can be divided into the Single-barrel Type (Type YZI) and Double-barrels Type ( Type YZII) .There are the vacuum pump, electric motor, pulsator, milk tube, milking cup group and leglen be installed on one machine. It can work flexibly, without space constraints, be convenient and flexible. It is suitable for all kinds of dairy farms and dairy raising by farmer households.
Based on the original model and according to the practical needs from the customers, our company developed this product after the research and design by experts, its features are unique design, easy operation, easy maintenance, vacuum stability, low noise, stability pulsating frequency, small vacuum fluctuations, and soft milking, Alternate milking front and back can massage and protect the udder, thus achieving the ideal effect of increasing production. Only one milker is needed to operate and maintain the machine.
Note: Customers can order the number of buckets and nipples.
Note: vacuum pump should add special vacuum pump oil.
vacuum pump should add special vacuum pump oil.
Note: vacuum pump should add special vacuum pump oil.
Item Model | Type YH-1 | Type YH-11 |
Operating Vacuum Degree | 0.04-0.05MPa( adjustable) | 0.04-0.05MPa( adjustable) |
Pulsation Times | 60-80 times per minute | 60-80 times per minute |
Pulsation Rate | 40/60 | 40/60 |
Power Fitted | 0.75KW | 0.75KW--1.1KW |
Gasoline Engine Standard KW Power and Rotating Speed | 1.3/1.5/2.5/3.1/3.8/3600 | 1.3/1.5/2.5/3.1/3.8/3600 |
Voltage | 110V,220V,240V or 380V | 110V,220V,240V or 380V |
Motor Speed | 1440 rpm per minute | 1440 rpm per minute |
The Number of Milking Nanny Goat Per Hour | 20-30 goats per hour | 40-60 goats per hour |
Vacuum Pump Capacity(L/min) | 200/250 | 200/250 |
Tho Number of Stainless Steel Milk Bucket | One (capacity of 25kg) | Two (each of capacity of 25kg) |
Employees Needed When Milking | one | one |
The Number of Milking Cup Group | one set | two sets |
