Clear Fuel Corrugated Convoluted PTFE Hose

Product Description

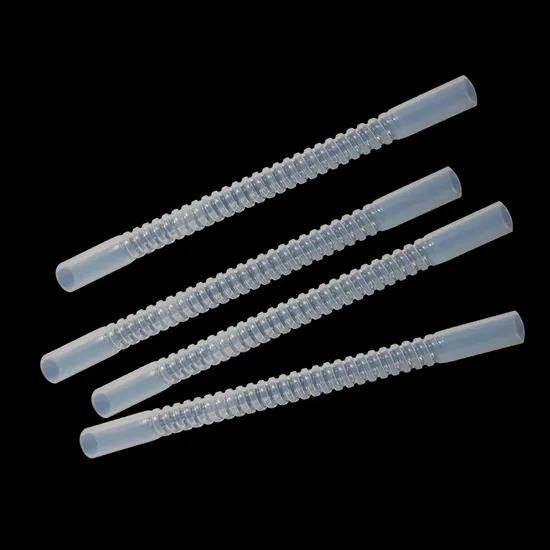

Product Description PTFE corrugated hose
1. Our PTFE corrugated hose is tailored to your exact requirements through custom size, color and length. 2. The hose is completely made of PTFE so it can handle all fuels available on the market without any problems.
3. Anti low and high temperature, working temperature range: -70 ~ +260 Celsius degree
4. Flexible, excellent electric property Non-stick, Non-toxic and long service life.
5. Our regular inner diameter: 3.2~67.2 mm, and 1/4''~3''.
Technical Date Technical Data of FFE, PTFE and PFA

Specifications	FEP	PTFE	PFA
Chemical/Solvent Resistance	Excellent	Excellent	Excellent
Density	2.15 g/cm3	2.16~2.18 g/cm3	2.14~2.16 g/cm3
Water Absorption	<0.03%	<0.01%	<0.03 %
Specific Gravity	2.12~2.17	2.13~2.22	2.12~2.17
Elongation	250%~330%	200~450%	280~400
Tensile Strength	19~22 MPa	20~45 Mpa	27~35 Mpa
Hardness Durometer	55 Shore D	50~65 Shore D	55~60 Shore D
Coefficient of Friction	0.05	0.02~0.1	0.04~0.06
Dielectric Constant	2.1 MHz	2.1 MHz	2.1 MHz
Dielectric Strength	500~600 V/mil	480 V/mil	500 V/mil
Volume Resistivity	>1018 ohm-cm	>1018 ohm-cm	>1018 ohm-cm
Work Temperature	-70~+200ºC	-70~+260ºC	-70~+260ºC
Melting Point	270ºC	327ºC	302~310ºC

Certifications
Company Profile Sihui Jiyi Fluorine Plastic Co., Ltd.
Established in 2014. Located in Zhaoqing city, Guangdong provine, China. Factory certifications: ISO 9001, ISO 13485 Have 2 cleanrooms, to produce food grade tubing, medical grade tubing and high purity tubing. A professional manufacturer of PTFE hose, FEP hose and PFA hose

---
