Why choose us? A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions. B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market C Quality: international top brands sensor and IC /100% production test, make sure a good quality D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage. E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety and health

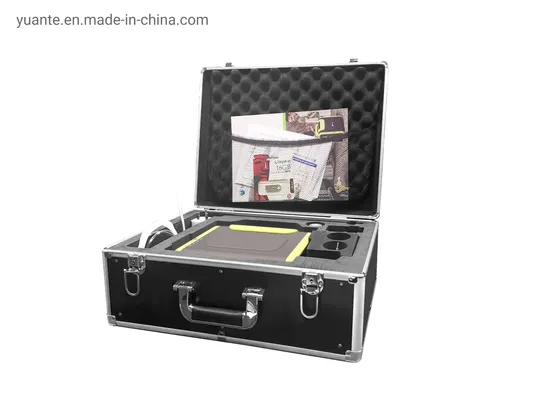

SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in scientific research, university and complex working environment. SKY8000 gas analyzer can detect up to 18 gases simultaneously. It can integrate electrochemistry, catalysis, thermal conductivity, infrared, light ion, ultraviolet and other detection principles, focusing on the accuracy of gas detection and user experience. Product advantage 1.Using world top brand sensors, the test results are more reliable and can be certifiedby third party authorities 2.Multiple industrial pump gas sampling, ten grades of pumping flow rate for selection. 3.Gas detection flow can be customized according to different testing environments. 4.Each module is equipped with multi-layer filtering device, which can filter oil, water,dust and other impurities efficiently. 5.Large capacity quick storage function, storage space can be customized. With an independent SD memory card, historical tested data can be viewed and deleted. 6.3.5-inch hd LCD screen with resolution 320* 480, beautiful and useful menu interface. Selected aviation wear-resisting material, suitable for various kind of industry environment Comprehensive Functions 1.Modular internal structure, supporting 1-18 gas detection requirements 2.Simple and quick screenshot settings 3.Monitor the temperature, humidity, pressure at the same time(Optional) 4.Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are selectable(Optional) 5.Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional) 6.High temperature, high humidity environment measurement(Optional)
| Sensors | PID & Electrochemistry&Infrared Ray |
| Gas detected | CO CO2 O2 HC NOX |
| Measure range | O2:0-25%VOL,,CO : 0-10%VOL,CO2:0-20%VOL,HC:0-10000ppm,NOX:0-5000ppm |
| Resolution | 0.01%VOL(CO2,CO,O2),1ppm(HC,NOX) |
| Display | Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download | RS232,RS485 singnal output,USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) | Optional with internal portable printer or external bluetooth printer |
| Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger | Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language | Chinese/English |
| Wireless network (optional) | Bluetooth |
| Network frequency | 2.4G high frequency. |
| wireless transmission distance | Bluetooth is less than 10m |
