Basic Info.
Structure
CNC Turret Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Guideway
Hardened Guideway
Worktable Size
254X1270mm
X/Y/Z Axis Travel
750/400/103mm
X/Y/Z Axis Motor
Servo Motor
3-Axis Rapid Feed
Standard
Variable Speed Milling Head
Optional
Control
GSK Siemens CNC System
Transport Package
Wooden Case
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg
Product Description

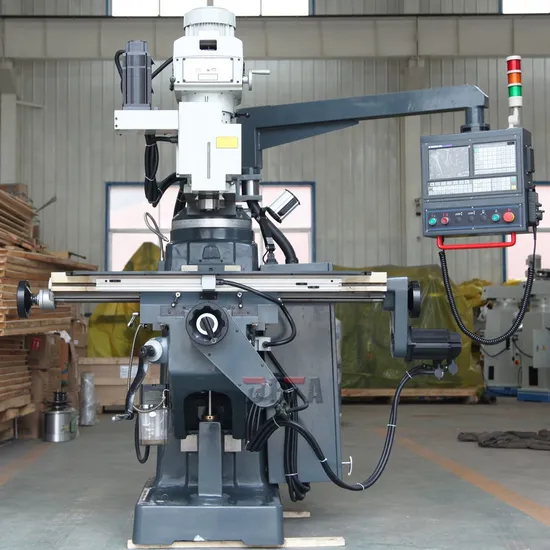

Hot Sale GSK Step Spindle Speed Milling Head CNC Milling Machine XK6325
| Model | Unit | XK6325 | XK6330 |
| Table size | mm | 254×1370 | 305×1370 |
| T slots | n*mm | 3×16 | 3×16 |
| Table loading | kg | 280 | 350 |
| X axis(table longitudinal move)travel | mm | 750 | 800 |
| 850 | 900 |
| Y axis(table cross move)travel | mm | 400 | 360 |
| Z axis(Quill move)travel | mm | 103 | 103 |
| X/Y/Z axis servo motor | kw | 1 | 1 |
| Knee vertical travel | mm | 400 | 380 |
| Ram travel | mm | 470 | 500 |
| Distance from spindle to table | mm | 0-400 | 0-380 |
| Spindle speed | Atandard:16 steps | rpm | 50HZ:66-4540
60HZ:80-5440 | 50HZ:66-4540
60HZ:80-5440 |
| Optional:Variable | 60-4200 | 60-3600 |
| Spindle taper | | Standard:R8/Optional:NT40 | NT40 |
| Motor power | HP | 3 | 5 |
| Head rotating | Swiveling | degree | 90° | 90° |
| Tilting | 45° | 45° |
| CNC controller | | GSK/Siemens | GSK/Siemens |
| Packing size | mm | 1900×2000×2230 | 2000×2000×2250 |
| G.W | kg | 1400 | 1800 |
Features:
1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways
2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range
3.Cutter head swivel to both sides
4.Automatic central lubrication
5.Mini and economical style, with lower price and widely using
6.Milling head from Taiwan
7.Bearing from NACHI
8.Ball lead screw from Chinese famous brand
9.3-Axis servo motor and 3-axis rapid feed
10.Variable speed milling head for your choice as optional accessories.
>>
