2529K 12V DC 12kgs/120n Degaussing Electro Magnet Lifting Permanent Electromagnet

Product Description

PRODUCT FEATURES

2529K 12v Dc 12Kgs/120N Degaussing Electro Magnet Lifting Permanent Electromagnet
- Size: D25 x 29mm
- Power: 12V or 24VDC, 7W
- Holding force>12kgs,
- Duty cycle: 10%
- Engerize to release and holding when power off
- Electroplating anti-corrosive
- Epoxy filled Waterproof
- Different models are available, holding force: 1kgs - 200kgs.
- Application: electronic machine, package machines, mechanical hands.
- 20 years of design and produce experience
- OEM/ODM is welcomed

TECHINCAL DATA

Products Data Sheet
Product name:	Permanent electromagnet	Insulation Class:	B
Model:	JSP-2529K-12V	Hi-Pot test:	AC750V/2S
Size:	Ø25 x H29	Service Life:	>500 Thousand
Force:	12Kg/120N	Lead time:	3~5 days if have stock
Voltage:	DC 12V/24V	Sample Order:	Acceptable
Power:	7 W	MOQ:	2 PCS
Duty Cycle:	100%	Warranty:	1 Year
Lead Wire:	Bottom edge out 25cm or customized	Origin:	Ningbo, Zhejiang
Action Form:	Energise to release	Surface:	Electroplating(Zn Coating)
Install Thread size:	M4 x H10	Material:	steel & enameled wire
N.W.:	82 g	Certificate:	CE/ROHS

PRODUCT PHOTOS

PRODUCT DRAWING

Customized design is welcomed.

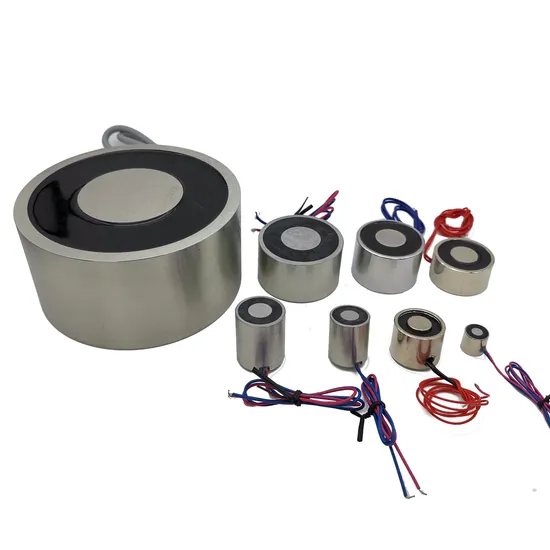

PRODUCT SERIES

Model	Dimension	Install Thread	Holding Force	Power	Min thickness of counter plate	Weight
JSP-1010K	Ø10*10	M2_6	5N	3.0W	1mm	6g
JSP-1212K	Ø12*12	M3_6	10N	6.0W	1mm	8g
JSP-1419K	Ø14*19	M3_9	30N	10W	2mm	12g
JSP-1512K	Ø15*12	M2_7	30N	13W	2mm	12g
JSP-1515K	Ø15*15	M4_8	20N	3.6	2mm	15g
JSP-2023K	Ø20*23	M3_5	30N	6.0W	2.5mm	37g
JSP-2025K	Ø20*25	M4_7	50N	4.0W	2.5mm	43g
JSP-2520K	Ø25*20	M4_4	60N	4.5W	3mm	75g
JSP-2521K	Ø25*21	M4_11	120N	7.5W	3mm	78g
JSP-2522K	Ø25*22	M4_12	100N	7.3W	3mm	80g
JSP-2529K	Ø25*29	M4_14	120N	7.0W	3mm	90g
JSP-2821K	Ø28*21	M4_14	150N	8.0W	3mm	95g
JSP-3025K	Ø30*25	M4_14	200N	14.4W	3mm	104g
JSP-3229K	Ø32*29	M5_19	180N	14.8W	3mm	168g
JSP-3333K	Ø33*33	M4_14	250N	5.5W	3mm	170g
JSP-3425K	Ø34*25	M5_16	300N	15W	3mm	160g
JSP-3529K	Ø35*29	M5_19	300N	28W	3.5mm	168g
JSP-4025K	Ø40*25	M6_18	200N	10.5W	3mm	185g
JSP-4029K	Ø40*29	M6_18	400N	16W	4mm	223g
JSP-5029K	Ø50*29	M8_19	500N	9.6W	5mm	320g
JSP-6329K	Ø63*29	M8_18	960N	33W	6mm	520g
JSP-7045K	Ø70*45	M8_26	1200N	17.5W	8mm	900g
JSP-8245K	Ø82*45	M8_25	1950N	43W	10mm	1400g
JSP-15063K	Ø150*63	M16_16	3500N	60W	15mm	6500g

FIVE STAR REVIEW

CERTIFICATE

OUR WORKSHOP

COOPERATION CLIENTS

WIDELY APPLICATOIN

FAQ:
Q: Are you trading company or manufacturer? And where is your factory located?
A: We are factory. Our factory is located in Ningbo City, 2 hours from Shanghai Airport by car.
Q: Do you have CE approved?
A: Yes, we have CE and ROHS certificate
Q: How to choose a suitable electromagnet quickly?
A: Please provided us following parameters:
Act form: energized to hold or energized to release?
Holding force(Kg/N)?
Shape (circular or rectangular),
Dimension limited (diameter and height).
Duty cycle,
Cable length and connector,
Waterproof? Yes/No need
Residual force(Kg/N)?
-------------------------------
For example: You can say I want purchase electromagnet as below:
Circular Permanent Electromagnet,
Action Form: Energized to release
Force: 40Kg/400N
Size: Ø40 x H29
Voltage: DC 12V
Power: 16 W
Duty Cycle: 10%(For each cycle: Max. Energized time 3s, de-energize time 60s)
Lead Wire: Bottom edge out 25cm with XH2.54 male connector.
Waterproof: Yes.
Install Thread size: M6
---------------------------------------
Q: How long is your delivery time?
A: Samples ready for delivery in 3 days if the goods are in stock, or in 7-10 days for for customized product. It is according to quantity.
Normally, you will get our samples in 7-10 days after payment.
Q: Can you customized electromagnet?
A: Yes, you are welcome.
Q: Can I print my Brand/Logo on the product?
A: Yes, free of charge.
We are looking forward to your inquiry.
