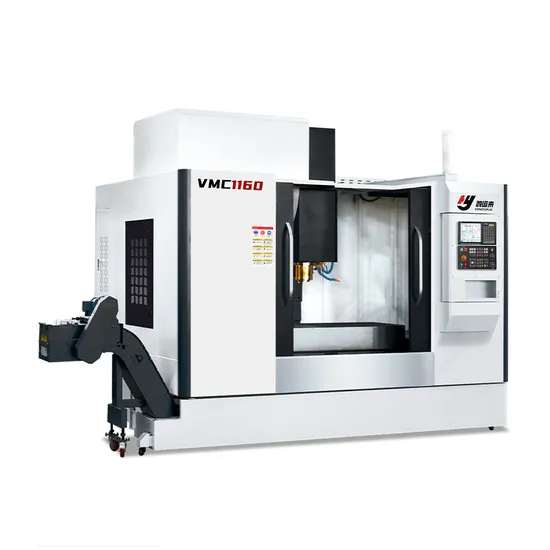

High Quality Vertical Spindle Machining Center Vmc1160 Machining Center

Product Description

Product Parameters

				Specification	Unit
Table	Size			1200*600	mm
	Max. Table Load			800	kg
	T-slot No. and size			5-18-100	mm
processing	Table Travel (X)			1100	mm
Scope	Table Travel (Y)			600	mm
	Table Travel (Z)			600	mm
	Spindle end face to Work surface distance		Max.	720	mm
			Min.	120	mm
	Distance from Spindle center to Z Axes rail surface			650	mm
Spindle	Spindle Taper (7:24)			BT40-150
	Range of Spindle Speed			8000	r/min
	Spindle Motor Power			11/15	kW
	Oil cooler				With
Move	Fast-moving	X Axes		36	m/min
		Y Axes		36
		Z Axes		24
	Moving speed			1-10000	mm/min
Tool Magazine	Tool Magazine style			disc
	Tool Magazine Capacity			24
	Min. Time of Tool Change			2.5	s
Positioning Accuracy	Accuracy testing standard			JISB6336-4:2000/ GB/T18400.4-2010
	X/Y/Z Axes			0.008	mm
X/Y/Z Axe Repeatability				0.005	mm
Dimension(L*W*H)				3100*2500*2800	mm
Weight				6800	kg

Product Description

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems

---
