Small Economical Plastic Grinding and Milling Granulator

Product Description

Plastic Grinding and Milling Granulator

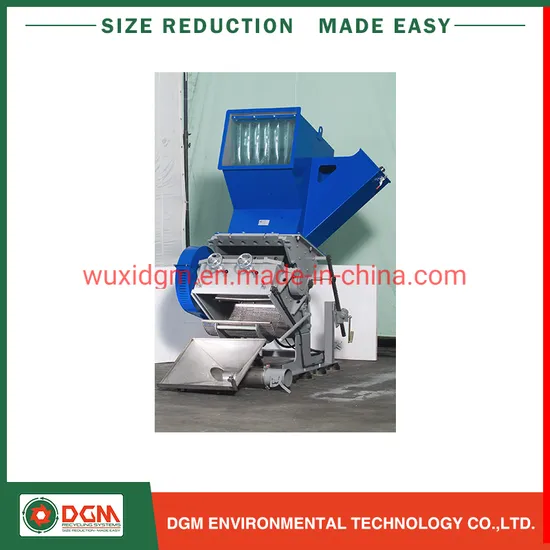

Descriptions The DGE Economical Granulator has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
The rotor is a heavy duty paddle type design with knife cover plates to protect the blades when processing abrasive applications. The knife mounting bolts are screwed into the mounting plates as opposed to the rotor. All knives are manufactured from chrome nickel tool steel as standard, but when processing applications that are particularly abrasive the DGE granulators can be fitted with a specially designed wear resistant rotor utilizing wear resistant steel parts and hardox facing.
The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.
The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge. Specially designed hopper with 3 sets of curtains to prevent material flybacks. Integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

Specifications
Layout
Features Deflector wedge V-cut technology Heavy duty bearings Oversized external bearing housings Knives are externally adjustable Robust welded steel construction Wide choice of rotor variations Electrical hydraulic control - to open housing Electrical hydraulic control - to open screen cradle Replaceable wear plates Amp meter control
Options Extra flywheel Double infeed hopper Roller feeder Mounted screw feeders in hopper Winding protection Metal detector Metal separator Bespoke colour scheme Increased motor drive
Applications PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the shredder and granulators machines to be safely shipped to customer appointed location.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory?
DGM is a factory with 15 years of experience in machinery manufacturing, and 25 years of experience in technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirements in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.99 Qianluo Road, Huishan District, Wuxi City, Jiangsu, China.
Q5: what is your contact informatoin?
Fax: +86 510 8357 0210

Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.

---
