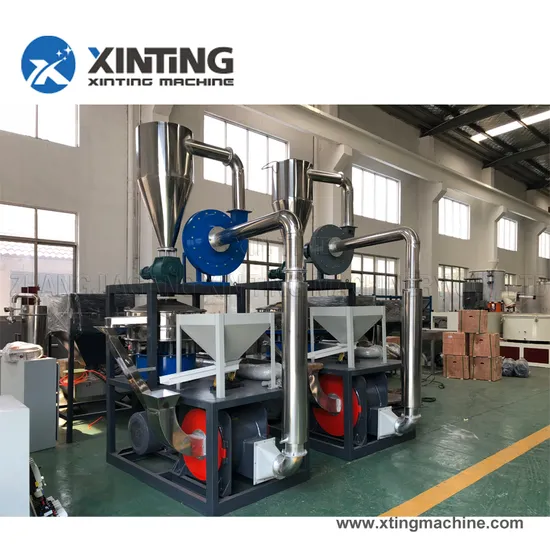

Waste Plastic PP PE HDPE LDPE EVA PVC Pet Powder Making Machine Pulverizer Miller

Product Description

waste plastic PP PE HDPE LDPE EVA PVC PET Powder making machine Pulverizer miller
Main Features
1. This type can grind most kinds of Hard & Soft materials into 20-100 mesh powders in normal temperature.
2. A widely use range, PVC/PE/HDPE/LDPE/LLDPE/ABS/PS/PA/PC/PET/PMMA/PLA Materials.
3. Equipped with seperatly Dust powder collector.
4. The transport pipe and silo are all bade by stainless steel, it can work much more continously than normal steel type.
5. Knife can be adjusted easily, smaller size powder or bigger size powder is just according to your demand.
6.Low energy consumption and high output.
PART I. Specification on Plastic milling machine
Adopted Material
HDPE,LDPE,LLDPE,HDPP,ABS,MBS,PVC ,PP ...
Mesh Demands
This item is decided by buyer; in general, the making powder is 10-80meshes.
Technical parameter PE PP PVC LDPE LLDPE pulverizer :

Model	SMW-400	SMW-500	SMW-520	SMW-550	SMW-600
Milling chamber DIA:	Φ400	Φ500	Φ520	Φ550	Φ600
Rotor QTY	3	3	3	3	3
Main Speed RPM.	3800	3900	3900	3900	3900
Main motor power:	30KW	30KW	37KW	37KW	45KW
Close blower power	0.75kw	0.75KW	0.75KW	0.75KW	0.75KW
Blower power	2.2kw	2.2KW	3KW	3KW	4KW
Final powder size	12-120 micron	12-120 micron	12-120 micron	12-120 micron	12-120 micron
capacity	50-120kg/hr	150-200kg/hr	180-250kg/hr	200-300kg/hr	300-550kg/hr
Round Vibrating sieve	without	Customized	Customized	Customized	Customized
Dust collecting system	without	Customized	Customized	Customized	Customized
Cooling system	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Machine weight	850kgs	1200kgs	1250kgs	1300kgs	1550kgs
Dimension	2200*800*2100 (mm)	5900*1450*2900 (mm)

---
