Xianda Automatic Multiblade Block Cutter for Granite Btc-2500

Product Description

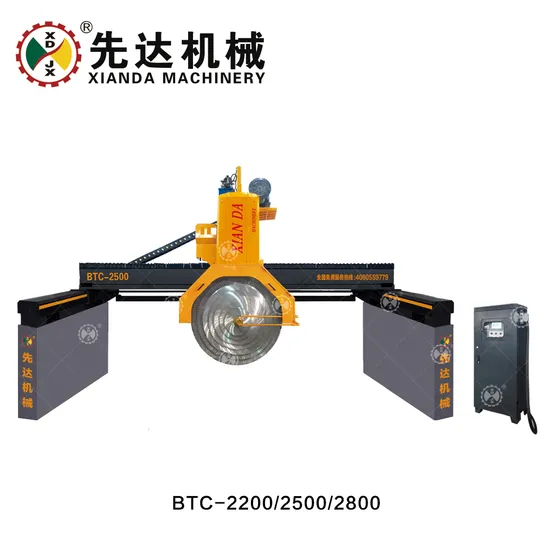

Product Description BTC-2200/2500/2800 Multi-blades Granite Marble Bridge Block Cutting Machine uses inverter to control left-right feeding, speed adjustable. It uses hydraulic lifting system, combined with four guide poles, also Guide Sleeve with multi-functions layer seals, like waterproof, dustproof, anti-spill. Forward-backward slicing uses high-precision screw nut driving, automatic slicing. Main spare parts adopt imported good-quality materials, the block can be placed on the ground directly. Thus the whole machine is featured with high cutting efficiency, high slicing precision, high flatness of plate after cutting, high stability, easy-operating etc. It is a ideal equipment for your fabricating plant.
Note: 360°rotating worktable can be selected if customer requires.
Technical Parameter

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max blade diameter	mm	2200	2500	2800
Max processing length	mm	3600	3300	3200
Max processing width	mm	2200	2200	2800
Max lifting stroke	mm	1350	1350	1350
Water consumption	m3/h	15	15	15
Main motor	kw	45/55	45/55	55
Gross motor	kw	56/66	56/66	66
Outline dimension	mm	8000*4800*3700	8000*4800*3700	8000*4800*3700
Gross weight	kg	14000	14500	15000

Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Our Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

---
