Flexibility Telescopic Boom Shotcrete Concrete Spraying Pump Labor Saving Spraying Robot

Product Description

flexibility fast concrete spraying low rebound simple operation,labor saving spraying robot
Mobile Separated Robot Wet Concrete Spraying Machine

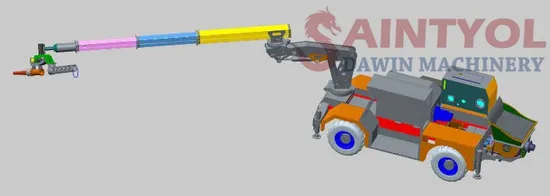

Saintyol DAWIN Machinery QKSP-20 concrete wet spray trolley is the most compact and flexible engineering chassis self-propelled wet shotcrete trolley manipulator in Chinese market. It has many advantages such as compact structure, reasonable layout, powerful function, beautiful appearance, perfect performance, flexible boom, wide operating range and high reliability and so on.
Chassis:
The cab is centered, the wheelbase is only 2.4 meters. The front axle has a swinging suspension. It has good driving performance with wide tires. The approach angle and departure angle can reach 25°, and the ground clearance is up to 0.4 meters. The whole vehicle is powered by Yuchai 62.5KW diesel EFI engine. The walking system adopts hydrostatic drive system. The steering system adopts multi-wheel steering control system, which has various steering modes, such as front wheel steering, four-wheel steering, crab walking steering and so on. The vehicle can be flexibly turned and driven in a small space.
Boom:
The boom adopts a folding + swivel + telescopic structure. The boom manipulator has seven-axis freedom. It can perform precise head-pointing spraying and Th-like brushing spraying in all directions. After fully retracted and then rotated, the boom slewing radius is only 1.8m, which enables the boom to perform 360° unobstructed rotation in a small space. The maximum front spraying distance can reach 8m when full extension, the maximum spraying height can reach 9m, and the maximum spraying width can be up to 15m and the maximum spraying depth is up to 4.5m.
As length 5m, width 1.85m, height 2.6m concrete wet spray trolley, it can meet 3M×3M - 12M × 8M (W×H) medium and small section tunnels, roadways, slopes, culverts, mines and other concrete spray anchor support operations, the vehicle has some features such as flexibility, fast concrete spraying, low rebound, simple operation, labor saving and so on. The equipment is a flexible, reliable and cost-effective concrete wet spray manipulator.

	System	Unit	specification
Boom parameters	Boom structure		++ Folding telescopic rotation
	Jet vertical height	M	9
	Jet horizontal width	M	15
	Jet depth	M	4.5
	Big arm pitch angle	°	60°
	Manipulator horizontal angle	°	360°
	Manipulator swing angle	°	240°
	Main pump displacement	Ml/r	85
	Boom control mode		() Remote control (Electric proportional control)
Chassis parameter	Walking mode		Wheel type
	Driving mode		Static hydraulic drive
	Engine	kw	62.5kw/2200rpm
	Max driving speed	Km/h	30
	Climbing speed	%	40
	Drive axle		, Front and rear steering drive axle
	Parking brake		Wet brake
	Service brake		Hydraulic clamp disc braking
	Tyre		Wide cross-country tire
Jet performance parameters	Max. Theoretical jet capacity	M3/h	20
	Max. Theoretical delivery pressure	Mpa	8 () 8 (adjustable)
	Max. Pumping time	t/min	25() 25 (adjustable)
	Distribution valve form		S S tube valve
	Delivery cylinder diameter	mm	Φ140
	Outlet diameter	mm	125
	Filling height	mm	1350
	Allowable max. Aggregates diameter	mm	20
Hydraulic system	Hydraulic system mode		Open system
	Main system max. Oil pressure	MPA	32
	Hydraulic oil capacity	L	160
Other parameter	Accelerator tank capacity	L	400
	Accelerator weighing system		+ Remote non-polar speed regulation + automatic control
	Fuel oil tank capacity	L	100
	Accelerator pump	L/H/Mpa	400/1.0
	Front leg span	M	2.7
	( X X ) Dimension (L*W*H)	mm	5000*1850*2600

Advantages
Saintyol DAWIN Robot shotcrete Spraying Machine advantages are as below: Variable Main Hydraulic Pump
Spraying capacity continuously adjustable (stepless speed change ) Variable Plunger Accelerator Pump
Accelerator feeding quantity continuously adjustable, Stepless adjust in range 0-9% . Placing boom control valve
Placing boom controlling valve is proportional valve, mild and flexible. Brand Engine
Torque, Powerful, Long life, Easier in maintenance. , Separated 2 parts, The trailer shotcrete Pump could be use separately.
The mobile robot spraying machine could work as a trailer, the behind shortcrete pump could spraying jobs separately. Hydraulic fittings.
ALFAGOMMA Fittings Italy or Gates fittings U.S. Cordless remote control
Imported cordless remote control, reliable, stable signal, easier operation. Accelerator feeding and control technology
Brand weighing pump, precise in weighing, Atomizing jet and spraying nozzle material mixed to make accelerator to mix with concrete equality. Low rebound rate
Concrete rebound rate in 15-50% when dry spraying. Even less than 10% in rebound rate when wet spraying, cost saving effectively. High effectively wet spraying.
Robot shotcrete spraying machine use high grade placing boom+robot arm, flexible operation, large working range, safety, reliable and effective. Labors saving.
Comparing to manual concrete spraying by workers, Robot Spraying machine could be adjust into full load working condition, around 2-3 times higher working rate than manual and labors saving more than 3 at least.
Auto mobile truck Pumps for Wet-Mix. Shotcreting with 30m3/hr gunite capability
At present, Wet Concrete shotcrete Pump Truck with Cordless remote control Smart Articulated Robotic Placing Booms is the New Design in 2018 for effective Tunnel Jobs.
A. Front and rear leg the span is large, work stability.
1.The front leg adopts horizontal telescopic cylinder + H-type legs, legs span is large, The rear leg adopts eight characters closed type leg, forcing ability is good, more stability, can effectively support the rear hopper pumping concrete cylinder loading impact.
B. Pumping system
1) Pumping hydraulic system adopts 55KW four-pole motor 130ml/r adjustable displacement main pump+ 45ml/r variable pump (Rexroth series)
2) The main valve adopts imported eight proportional valve (BARMAG ) from German,
The electric proportional valve has the fixed-variable switching function.
C.The boom adopts symmetrically arranged structure
The boom is symmetrically arranged with a symmetrical structure. The telescopic arm is connected to the base arm on the same axis. The telescopic arm is directly connected to the base arm through the pin. No connecting arm, no lateral force, no stress concentration, no happen Fatigue cracking, so the boom system is more stable and reliable.
D.Swinging arm
the boom can swing ± 45 °. can increase the flexibility of the jet mechanism to improve the single sprayable area, not only the spray surface is more smooth, beautiful, but also reduce the turntable rotation times, increase the stability of the boom
E.Boom section
Telescopic arm with four BS700 high-strength steel plate welded after welding,
weld joints have a lap bar, The rigidity of the boom increases so that the telescopic arm has a small vibration amplitude under the wet spraying operation, good stability, can improve the quality of sprayed surface
F.Reinforced rotary drive mechanism
1.rotary reducer adopts turbo-type gear reduction mechanism, big reduction ratio,
strong self-locking ability, the big output torque, stable smooth operation, high reliability.
2.Adopts well-known brand rotary motor, large displacement, torque, good stability, in the precise control of the proportional valve, the rotation without jitter phenomenon.
G.Electrical control system
1.Electrical control system configuration
2.Remote control adopts domestic well-known brands, remote control distance, strong signal, no dropped calls, serial number phenomenon.The electrical components are all made by international famous brands such as Siemens.
H.Quick - setting agent filling system
1. Accelerator pump driven by variable frequency motor, the use of inverter precision control quick-setting agent pump output flow, according to the current pumping of the amount of concrete automatically adjust the amount of added.
2.Accelerator pump with 2600L / h large displacement diaphragm pump, you can add 1000 l of the box in 20 minutes, greatly saving the preparation time.
3.Accelerator pipeline adopts a closed large diameter pipe, even in the winter can also smooth delivery accelerator.

SAINTYOL DAWIN Machinery is a company specializing in the research, design and production of construction machinery for nearly 20 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.
We take care of your order!
1. Best manufacturer in North China.
2. A factory with over 20 years' experience.
3. Professional teamwork of every process.
4. Competitive price and perfect quality.
5. Efficient after-sale service.
SAINTYOL DAWIN Machinery Answers:
Q: How many kinds of trailer concrete pumps you have?
A: We have all kinds of concrete pumps such as small models with capacity 20,25, 30,40m3/h, medium models with capacity 40, 50m3/h, large models with capacity 60, 803/h.
Q: Do you have concrete placing booms that could be working together with concrete pump?
A: Yes, We have below series.
1: 13/15/17m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17Mobile Hydraulic Spider Concrete Placing Booms
3: 28/32m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: What is the configuration?
A: For exporting, most of the components are world famous top brands such as LOVOL, DEUTZ, Siemens, Rexroth, Kawasaki, Omron, LG, Eaton, Manuli, Parker etc. The configuration could be customized according to client's requirements.
Q: Is engineer available for training and after sales service?
A: Yes, our oversea engineers team are standing by for oversea service. Some engineers could speak English.
After-sale Service
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting
equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received
the telephone.
6. For exported products, Our company sends the constructor to help to operate and
management equipment, time according to your needs. The related fee will be undertaken
by buyers.
7. Promptly provides the fittings according to users' demands, handles for the user consigns
for shipment.
8. All products (easy worn parts not included) loss caused by non-human factors will be
free of charge for half a year.
9. Provides the technology advisory service as necessary.
10. Please contact me via telephone when you have any problems with the plant.
Dear friends:
Welcome to our website and hope our trailer wet concrete shotcrete pump equipmentwill make you satisfied.We think creatively,design bravely,manufacture precisely and loyalty to our customers. And we have our own factory.so We can produce the products,according to customer requirements .

Construction for Prosperity!
Yours sincerely
Saintyol Dawin Machinery

---
