Powerful Twin Head CNC Duplex Milling Machine Precision Full Automatica Cutting for Moldbase Metal Aluminium Plate Pre-Squaring Four Sizes

Product Description

Let GOODA help you keeping quality at 100%!
Dongguan GooDa Machinery Manufacturing Co.,Ltd established in 2012, is the first national high-tech enterprise integrating R&D,manufacturing,sales and service of CNC milling machine tools in China.The company has manufacturing bases in Dongguan Changping,Huangjiang,Qishi and Jiangsu Kunshan, and offices in the United States,South Korea, Malaysia,Thailand,Vietnam and Brazil.At present, it is one of the largest manufacturer of CNC Duplex milling machines in the world.
GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers.

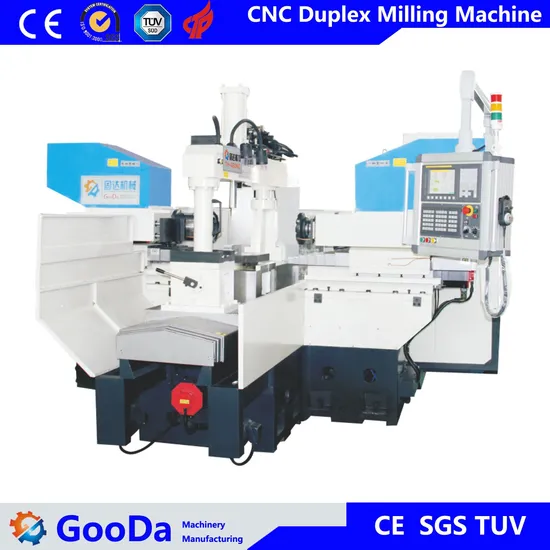

MODLE : TH-460NC
Twin-head CNC Milling Machine, mill four sides automatically
CNC PLANER MILLING MACHINE

Best choice for 20mm-460mm size
Min Cutting Size of Workpiece (L*W*H) :20*20*20mm
Max Cutting Size of Workpiece (L*W*H) :460*460*190mm
CNC Twin-head CNC Milling Machine Main Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
Specially design for milling small parts.

Item: Duplex Milling Machine		Unit	Model
			TH-460NC
Cutting Capacity	Control Axis	No.	3/4
	Max.Milling Size (L*W*H)	mm	460*460*190
	Min.Milling Size (L*W*H)	mm	20*20*20
	One time Cutting Capacity	mm	2*2.0
Travel	X axis	mm	250
	Y axis	mm	250
	Z axis	mm	720
Feed Speed	X/Y/Z Max. rapid feed rate	mm/min	10000
Spindle	Spindle speed	Rpm	50-500
	Spindle taper	-	NT50
	Cutter diameter	mm	200
Motor	Spindle servo motor	Kw	2*9
	X/Y axis feed servo motor	Kw	2.5
	Z axis feed servo motor	Kw	2.5
Work table	Worktable dimension	mm	400*400
	Max.Loading weight	Kg	500
Hydraulic Clamper	Cylinder No.	Pcs	1
	Oil tank volume	L	60
Lubrication system	Lubricating oil tank	L	3
	Lubricating power	W	18
Floor space require (L*W*H)		mm	2.8*2.9*2.3
Machine weight		ton	6
CNC system		-	FANUC SYSTEM OR Mitsubishi controller

You can choose FANUC system or MITSUBISHI Controller as you like.
Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting.
Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
One worker can run two machines at the same time.
{Workshop}
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software coyright, and has successively passed the ISO 9001 quality management system certification of EU TUV certification body,EU CE product safety certification, intellectual property management system certification,national high-tech enterpise evaluation and other honors.In order to maintain the leading edge of product technology,the company has actively carried out school enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages,the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Indusrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC inteligent equipment capacit.
{CERTIFICATE}
Manufacturer of CNC duplex milling machines and other series of professional CNC machine tools !!
{EXHIBITION }
Every feature,function and configuration of our machinery are made for our customer

---
