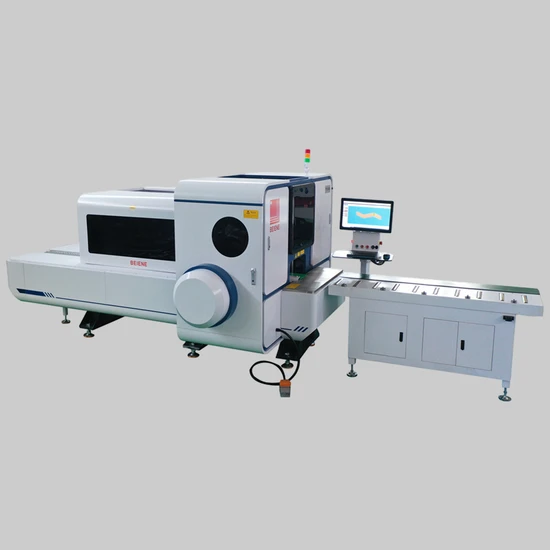

Intelligent 3D Busbar Processing/ Punching and Shearing Machine with Busbar Software

Product Description

Advantages

1. 3D software--This is our independent patent in busbar processing, which can realize 3D automatic programming and dynamic simulation.
2. Double clamps--Comparing other single clamp, double clamps can make processing more accurate and stable.
3. Hydraulic system-- Piston pump (rather than gear pump) has large drive power and realize high efficiency.
4. Main components--Imported, so the quality and service life can be guaranteed. Configuration

Control Section
Serial No.	Name				Instruction
1	Programmable Control				OMRON/Schneider
2	Sensor				Schneider
3	Control Button				OMRON
4	Touch Screen				OMRON
5	Computer				Lenovo
6	AC Contactors				ABB
7	Circuit Breaker				ABB
8	Servo Motors				YASKAWA(Japan) or Schneider
9	Servo Drivers				YASKAWA(Japan) or Schneider
10	Control software and Three-dimensional computer-aided design				Gaoji Busbar Processing System(GJ3D)
Transmission System
Serial No.			Name	Illustration
1			Precision Linear Guide Rail	Taiwan HIWIN
2			Precision Ball Screw Cylinder	Taiwan HIWIN
3			Bearing	Japan NSK
Hydraulic Section
Serial No.		Name				Illustration
1		High Pressure Electromagnetic valve				Italy
2		High Pressure Tube				Germany Rivaflex
3		High Pressure Oil Piston Pump				Rexroth

Specification

Description		Unit	EMAC-BP-40
Press Force	Punch Unit	KN	400
	Shear Unit	KN	400
X Max Speed		m/min	100
X Max Stroke		mm	1500
Y Max Speed		mm	100
Z Max Speed		mm	60
Minimum Oddment Length		mm	55
Max Hit Speed		HPM	150
Tool Kit	Punch Mold	set	5
	Shear Mold	set	1
Control Axis			3
Hole Pitch Accuracy		mm/m	±0.20
Max Hole Punch Size		mm	32
Max Busbar Size(W*H)		mm	6000*150*12
Total power		kw	15
Machine Size:L*W		mm	6600*2180
Machine Weight		kg	6300

---
