US$3,998.00-9,998.00
|
1 piece
(MOQ)
|
Basic Info.
Lift Mechanism
Telescoping Lift
Carrying Capacity
Middle-Level
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Hoizontal Outreach
16.51m
Platform Size
1.83m*0.76m
Transport Package
Nunude Packing, by Container or Roro Ship
Production Capacity
5000 Untis Per Year
Packaging & Delivery
Package Size
200.00cm * 130.00cm * 140.00cm
Package Gross Weight
100.000kg
Product Description

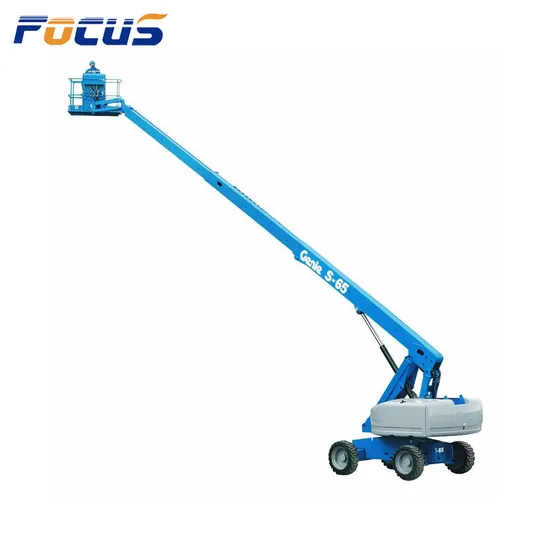

Genie S65 4x4 21.8m Diesel Boom Lift Construction Equipment Diesel-powered S boom lift for sell
Product Description
Genie® S®-65 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. And, the Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and job site materials.
Maximum capacity with a robust jib design to handle increased loads
Load sense technology for accurate load weighing and zero-load field calibration
Chassis tilt sensor technology maximizes access to hard-to-reach work areas
Onboard diagnostics maximize serviceability
Option to add the new Genie Lift Power™ generator system
Detailed Photos
Product Parameters
| Genie S-65 XC Specifications |
| Measurements | Metric | US |
| Working height maximum | 21.81 m | 71ft |
| Platform height maximum | 19.81m | 65ft |
| Horizontal reach maximum | 16.51m | 54ft 2in |
| Below ground reach | 2.65m | 8ft 8in |
| Productivity |
| Maximum lift capacity - unrestricted | 300kg | 66lbs |
| Maximun lift capacity -restricted | 454kg | 1000lbs |
| Platform rotation | 160° | 160° |
| Vertical jib rotation | 133° (+ 79° /- 54°) |
| Turntable rotation | 360° continuous |
| Turntable tailswing | 1.41 m | 4 ft 7.5 in |
| Drive speed - stowed | 4.8 km/h | 3.0 mph |
| Drive speed - raised/extended | 0.3 m/s | 1 ft/s |
| Gradeability - stowed | 45% | 45% |
| Turning radius - inside | 2.40 m | 7 ft 9 in |
| Turing radius - outside | 5.50 m | 18 ft 2 in |
| Controls | 12V DC proportional |
| Tyres | 355/55D 625 |
| Power |
| Power source | Deutz D2011L03i, 48 hp (36 kW) |
| Auxiliary power unit | 12V DC | 12V DC |
| Hydraulic tank capacity | 170 L | 45 gal |
| Fuel tank capacity - diesel | 132 L | 35 gal |
