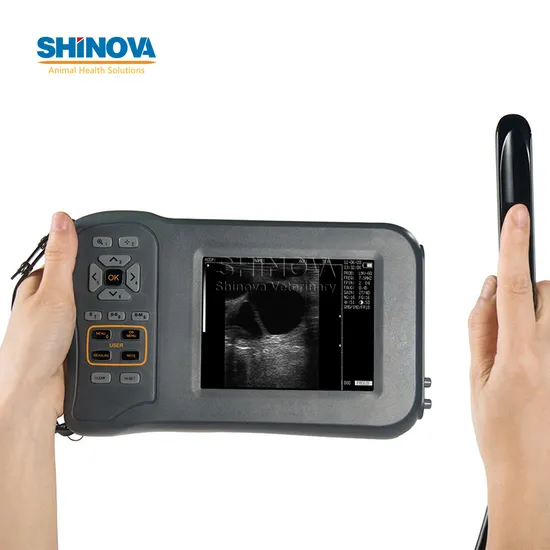

Handheld Veterinary Ultrasound Scanner (SonoScan A6V)

Product Description

Handheld Veterinary Ultrasound for Backfat(SonoScan A6V)
Model: SonoScan A6V
Product Description

Features:
Backfat, Muscle Scoring measurement
Fully digital scanning
Front End now with 96 element arrays, 32 channels
256 gray scales, 5.8 inch TFT LCD
Highly integrated circuits for small, light and compact design
Video connector, for external monitor (such as video glasses), VCR, or video image printer
1 USB port for direct to computer connection (with software)
Multiple usage with other optional probes Product Parameters

Specifications:
Scanning Model: Linear array transducer
BackFat probe: 150 mm length, 96 crystal elements
Probe Options: 6.5MHz rectal linear probe for Veterinary/Animal Science applications
Scanning Depth: 70-170mm
Lateral Resolution: (mm): ≤ 1 (depth ≤ 80mm) or 2 ≤ (80mm <depth ≤ 130mm)
Axial Resolution: ≤ 1 (depth ≤ 80mm)
Geometry Position Precision (%): lateral ≤ 7.5, axial ≤ 5
Monitor: 5.8 inch VGA LCD
Display Modes: B mode/B+B mode/B+M-mode/M-mode, now with 4B mode
Gray Scale (Shades of Gray): 256
Cine loop: 516 frames
Image storage: 64 frames
Local Zoom: 2 (can be used of frozen and real time images)
Electronical: focusing 4 focus points, user selectable
Focal points: 2 adjustable electronic focusing
Gain: Near, far and total gain
Battery: 4.5 hours continuous working time
Depth Shifts: B, B+B in real time
Frame Correlation: three levels to choose (B, B+B mode)
Image Conversion: up/down, left/right
Measurement: distance, perimeter, area and volume
Characters: date, patient's ID, age, sex, focus selections, frame correlation.
Power Supply: AC/DC Adapter (110/240V) and rechargeable battery
Applications:
Animal Science, Back fat, Muscle Scoring
Swine: back fat, muscle measurement, marbling
Bovine: reproduction, back fat
Sheep: back fat,Loin Muscle Area Scanning
Bovine, Porcine, Sheep muscle scoring Back fat and Hide.
Animal reproduction
Standard:
Main unit + one Backfat Probe (used to measure the area of back fat and eye muscle)
Optional:
3.5MHz Convex array probe (used for pig)
6.5MHz Rectal linear probe (used for cow)
Workstation software (CD)
BIOSOFT Muscle fat estimates applications software (CD)
High speed USB cable
Video printer Detailed Photos
