1575mm Kraft Paper Making Machine Cotton Stalk as Material

Product Description

1575mm Kraft Paper Making Machine Cotton Stalk as Material
Perfect service:
1.Technical consultation
2.Plant design
3.Installation and test run
4.Training engineers and workers
5.Good and long time after-sale service
The business process
1.Send your requirements:Raw material,capacity,paper grammage
2.We make the solution to you
3.Come visit and negotiate
4.Sign contract
5.First payment
6.Production
7.Pay spare money
8.Delivery
9.Installation ,training,test run
10.Production consultlation
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
Screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
Machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
Paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company
10T/D 1575mm kraft paper machine
I.Technical parameter:

1.Raw material	Cotton wood;

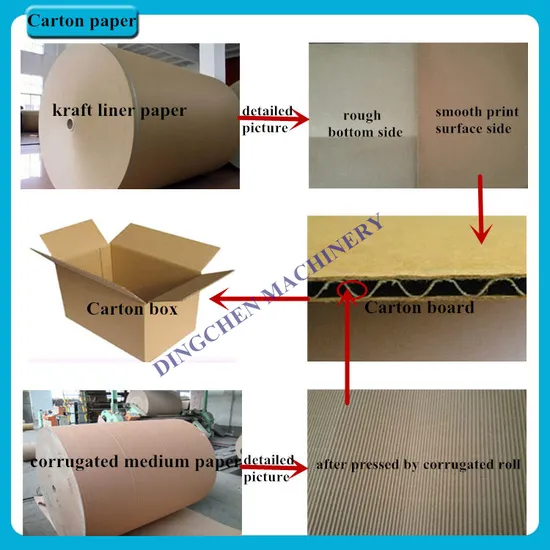

2.Output paper	Kraft paper/ corrugated paper;
3.Output paper weight	110-150g/m2;
4. Net paper width	1600mm;
5.Capacity	10T/D;
6.Width of cylinder mould	1950 mm;
7.Working speed	50m-80m/min
8.Design speed	50m-200m/min
9.Rail gauge	2400 mm;
10.Drive way	AC inverter speed, section drive;

II.Structure and characteristic of main part:
1.Cylinder section:Φ1500mm×1950mm×2400mm stainless steel cylinder mould 2 sets, Φ450mm×2400mm couch roll 3 sets, includesφ400×1950mm reverse roll 1set, rubber shore hardness 38ºC±2.
2.Press section:Φ500mm×1950mm×2400mm marble roll 2 sets, Φ450mm×1950mm×2400mm rubber roll 2 set, rubber shore hardness 92ºC±2,Pneumatic pressure device.
3.Dryer section:Φ1500mm×1950mm×2400mm alloy dryer can 6 sets,with dry screen device,scraper 6 sets,semi enclosed dryer hood 1 group.
4.Winding section:1575mm winding machine, winding drum
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
