Vertical Milling Machine High Precision Metal Component Milling and Boring Machine 4pm

Product Description

High Precision Component Milling and Boring Machine
√ Suitable for precision electronics, optional machinery and automation equipment, semiconductor precision components processing.
√ Suitable for boring, milling, drilling and other high positioning size processing, boring accuracy is controllable in the range of 0.005-0.012mm.
√ Taiwan high quality original milling head, NSK P4 precision grade spindle bearing, spindle runout: 0.003mm.
√ X,Y precision ball screw drive, precise positioning, feel smooth.
1. WORKTABLE
Our worktable is the pinnacle of craftsmanship, enhanced with ultra-audio quenching, precision grinding, and meticulously scraped guides for supreme smoothness. Add a rotary table to expand its multi-functional capabilities.
2. TURRET MILLING HEAD
Our advanced turret milling head is engineered to swivel 45° forward-backward and rotate 90° left-right, ensuring versatile milling for complex angles and intricate projects with ease.
3. SPINDLE
Fitted with a high-precision R8/NT30/NT40 spindle, our machine boasts a minimal spindle runout of just 0.003mm, delivering unmatched precision and accuracy.

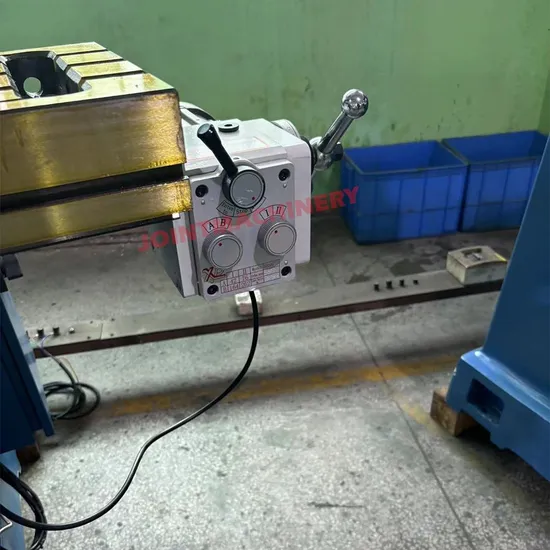

4. X/Y/Z AUTO FEED
Revolutionize your workflow with our automatic X/Y axis feed and electric Z-axis lift, significantly boosting efficiency and simplifying operations.
5. DRO
Elevate your precision with our adaptable 2-axis or 3-axis DRO, crafted to meet your specific requirements and enhance performance.
Vertical Milling Machine High Precision Metal Component Milling and Boring Machine 4PM

Model				4PM
Table size			mm	1270*254*90
Travel		X axis	mm	900
		Y axis	mm	370
		Z axis	mm	360
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	400
Diameter of quill			mm	85.725
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4540
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Dimension			mm	1500*1700*2200
Weight			kg	1400

Shenzhen Joint Machinery Co., Ltd. stands as a globally acclaimed leader, distinguished by our expert manufacturing and export prowess in CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. Our comprehensive selection of top-tier milling and grinding machines underscores our unwavering dedication to delivering first-rate machines and unmatched services worldwide. By integrating cutting-edge Taiwanese and German technologies, our production processes assure superior quality and reliability, upholding the industry's highest standards. Revered for their exceptional performance in precision, stability, and dependability, our machines proficiently tackle a variety of complex machining challenges. Our prestigious products have gained international acclaim, reaching markets across Asia, Europe, South America, North America, and beyond. We are devoted to fostering enduring partnerships with clients globally, consistently creating substantial business value together.

---
