Optimized Stage Mechanics with Precision Aluminum Linear Profile Guide Rail

Product Description

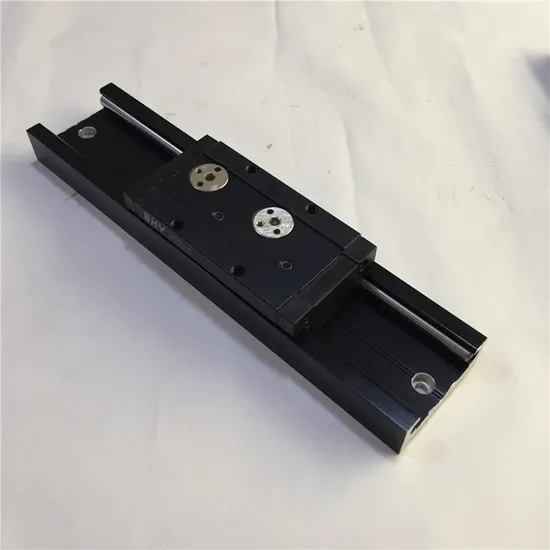

Introduction of ISGR20 double axis linear guide:
1. ISGR20 slide size:
Guide rail width: 60MM guide rail height: 22.5mm
Slider width: 58MM slider height: 12MM
Hole distance of guide rail: 120MM (can be customized)
The sliding block model is divided into three wheels, four wheels and five wheels
Model: isgb20uu-3 isgb20uu-4 isgb20uu-5 (customizable)
The mounting hole size of the sliding block is the screw hole of M5, and the distance between the mounting holes is 50*40mm. The length of the unlubricated seal of the three-wheel sliding block is 72MM, plus the length of the oil seal is 92MM. The length of the unlubricated seal of the four-wheel sliding block is 94MM, plus the length of the oil seal is 114MM. The difference between three - wheel and four - wheel sliding block mainly lies in force and stability. In general, if the force is not large, choose three wheel block, if the force is larger choose four wheel block.
Product application:
ISGR20 guide rail has many advantages and characteristics, so it can be used as long as the force is allowed. At present more typical applications include: laser cutting machine, laser engraving machine, testing instruments, small mini slide rail, videotape, printing machine, high-grade furniture, mobile door, daily necessities of pharmaceutical packaging machinery, food packaging machinery and packaging machinery, setting machine, brick machine building materials guide rail, visual equipment, industrial equipment, automated assembly line, electronic equipment and so on. The application of isgb15nuu-4 slider in the preform machine is particularly typical.
The products of SHY shenhua Asia are all inspected by the production management personnel, inspected by the quality control department, and stored in and out of the warehouse. The products are packed in wooden cases or in wooden boards according to the number of products and the actual situation of customers. The packages are firm. There will be no shortage of goods, out of stock, goods quality unqualified and other problems
Do you know how to splice the super long linear guide rail?
Do you know how to splice the super long linear guide rail? We often encounter such client, client asks to want 20 meters, 30 meters or 60 meters to wait a moment, how are we accomplished so long guideway? It must be impossible to make a whole strip this long, so we need to connect the guide rail. Will the guide rail hook up well? Can you affect use effect? This must be the customer's concern. Next, we will introduce how to splice the ultra-long linear guide rail, and the matters needing attention when splice.
Shenhua SHY super long linear guide rail is assembled with one end of the optical axis retracted a little, one end of the optical axis out a little. You just put the light axis that's coming out of this end into the one that's indented, and then you just butt it in. If the need for better docking, then we choose the guide rail should be close to the size of the guide rail section. The closer the size of the guide rail section is, the better the fitting degree of the butt joint is.
Shenhua ya SHY has done a very good job in butt joint of ultra-long rail. In particular, some mobile advertising screens are using the SHY built-in dual axis linear guide, which is widely used. For more information, please contact the customer service of dongguan shenhua Asia precision technology co., LTD.
The 12 meter track is used for the moving of the TV screen. It is very practical. The joint is so precise that it can hardly be seen.

---
