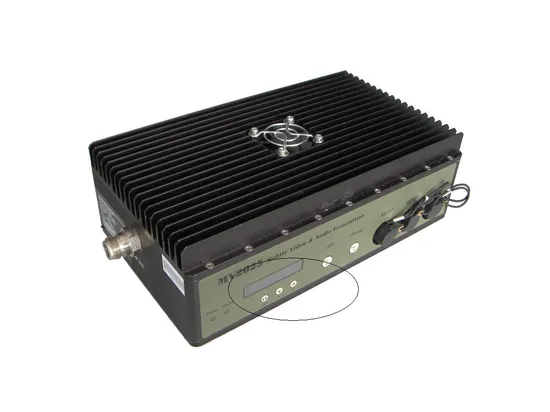

MV2500TKMF-AG/1080i HD Camera Mount Mobile Video Transmitter
Functions & Features: AES/ABS encryption Broadcasting A/V encoding with multiple A/V input Duplex-audio communication and GPS functions Working frequency and other parameters directly display on panel H.264 video compression, 1080i/P video quality Bitrate selt-adapted subject to channel bandwidth HDMI input with HDCP protocol Narrow and wide band: 1.5/2/4/6/7//8MHz adjustable SDI video, embedded audio and composite video input Unbalanced and balanced stereo input GFSK digital audio receiving modulation Digital audio decoding with good voice quality and internal en/decryption Audio frequency adjustable with builtin 64 channels and 24 addresses
| Power Supply |
| Working voltage V | DC12V~DC16V |
| Working current A | ≤2.5A@DC12V |
| Video Transmission |
| Frequency output range | 300-450MHZ, 560MHz-760MHz or user customized |
| Frequency bandwidth | 1.5/2/4/6/7/8MHz optional |
| Power output | 18-33dBm power output adjustable with 1dB step |
| C/N | 30dB @ 30dBm |
| SHG | >52dBc |
| Encryption | AES/ALLTECH Basic Scrambling |
| Modulation | COFDM |
| Constellation | QPSK, 16QAM, 64QAM optional |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 optional |
| Carrier | 2K |
| GUI | 1/32, 1/16, 1/8, 1/4 optional |
| Power flatness | Full band≤2dB,8MHz (within)≤0.5dB |
| A/V interface | BNC/RCA
|
| RS232 control interface | Standard RS232 level, 9600, 8, N, 1 |
| RS232 data interface | Standard RS232 level, support 1200~115200 |
| CVBS |
| Video white bar amplitude (mV) p-p | 700±20 |
| Video synchronous amplitude (mV)p-p | 300±9 |
| Video amplitude-frequency characteristic dB | 0~4.8MHz | -0.5~0.5 |
| 5.5MHz | -4.0~0.5 |
| SNR (not weighted) dB | ≥58 |
| Sloping field SNR (not weighted) dB | ≥50 |
| Analog Audio |
| Balanced audio input amplitude | Vmax=±15V |
| Unbalanced audio input amplitude | Vmax=3Vpp |
| SDI |
| Standard | SMPTE 425M (Level A and Level B), SMPTE 424M,
SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M |
| Input amplitude mV | 800±80 |
| HDMI |
| Verison | HDMI 1.3 |
| HDCP protocol | Support |
| Encoding |
| A/V bitrate | 64, 96, 112, 128, 160, 192, 224, 256, 320, 384Kbps adjustable |
| Audio encoding | MPEG1 Layer2 |
| Video resolution | Minimum 720×480 50i(720×576 50i ) |
| Maximum 1920×1080 60P |
| Video encoding | H.264 |
| Video bitrate | 500kbps-16.68Mbps self-adapted |
| Format | YCbCr4:2:2 |
| Audio Receiving |
| Audio Rx frequency range | 470.05~479.950MHz, factory setting: 479.950MHz |
| Audio Rx sensitivity | ≤-111dBm |
| Audio Tx modulation | GFSK |
| Frequency step | 150KHz |
| audio decoding overall bitrate | 4800bps |
| Audio output | 2.1Vp (open circuit output) |
| GPS Receiving |
| Signal receiving | L1 (1575.42MHz), C/A code |
| Communication protocol | NMEA0183 |
| Sensitivity | -165dBm |
| Data baudrate | 9600bps |
| Data refresh rate | 1Hz |
| GPS protocol | NMEA0183-4800bps |
Environment
|
| Working temperature | -25°C~55°C |
| Storage temperature | -40°C~70°C |
| Appearance |
| Dimension | 195mm ×125mm ×65.5mm |
| Weight | 1.95kg |
| | | | | | |
