Btma Recommends Cottonseed Special Oil Press to Be Popular in India

Product Description

BTMA recommends cottonseed special oil press to be popular in India Detailed Photos
Product Parameters
Main technical parameters
1. Processing capacity: 20-25 tons/24 hours (cottonseed)
2. Extraction temperature: 80-105 ºC
3. Extraction moisture: 3% -7%
4. Residual oil in cake: 6% -9%
5. Cake thickness: 6-25mm
6. Feeding form: storage pot φ 900 x 1 layer
7. Spindle speed: 24.5 rpm, steamer shaft speed: 32.8 rpm, feed shaft speed: 63.5 rpm
8. Single machine total power: 4-pole main motor 30KW, feeding reducer BLD22-23-5.5kW-4M
9. External dimensions: length 2.85 meters x width 1.85 meters x height 3.2 meters, net weight of equipment: 3.5 tons
10. Fill GB443-64.HJ30 mechanical oil into the gearbox to the centerline of the oil mark
11. High quality steel 20CrMnTi heat treatment process is used for screw and bar pressing, and the spindle is 40Cr
12. Gearbox reducer pulley φ 500. Motor wheel φ two hundred and ten
13. Host triangle belt, length C4572, 5 pieces
Product Description
Equipment usage:
The Sanbang spiral oil press is suitable for more than 50 types of oil crops, including peanuts, soybeans, rapeseed, cottonseed, sesame seeds, autumn sunflower seeds, sunflower seeds, tea seeds, castor seeds, corn germ, grape seeds, mustard seeds, perilla seeds, Moringa seeds, rubber seeds, tung oil seeds, pomegranate seeds, pumpkin seeds, and grass seeds.

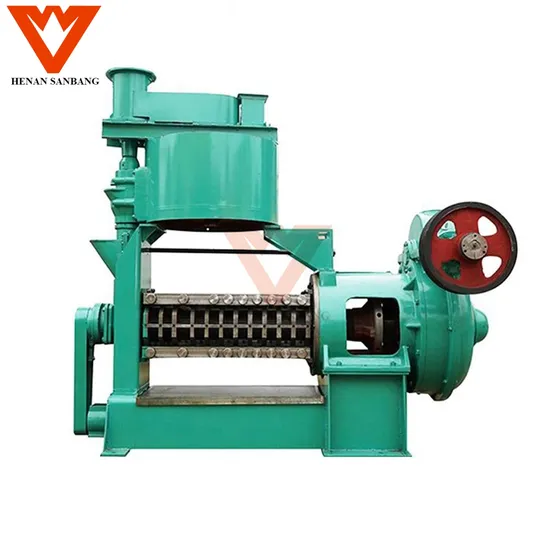

Main structure
This equipment consists of the following main components: steamer, feeding mechanism (feeding mechanism), squeezing cage, and squeezing screw shaft (package
Including the calibration cake mechanism and transmission device.
Performance characteristics:
The ZY202/204 pre press machine has process characteristics suitable for pre pressing. Under normal pre-treatment conditions, its characteristics are:
1. Large processing capacity. The workshop area, power consumption, operation, management, and maintenance work have correspondingly decreased.
2. The structure of the pressed cake is loose without crushing. Beneficial for solvent penetration.
3. The oil content and water content of the pressed cake are suitable for solvent extraction.
4. The quality of the extracted oil is better than that of one press or one extraction.

model	YZY200A-3	YZY200BL(cottonseed)	ZY202-3	ZY204-3
Processing capacity	8-10T/D	20-25T/D	40-50T/D	70-80T/D
Residual oil rate of dry cake	6-8	6-9	14-18%	12-18%
power	18.5KW	30KW	30KW	30+5.5+3KW
size	2850X1850X3270MM	2850X1850X3200MM	2900X1850X3640MM	2900x1850x4100MM
weight	5500KG	3700MM	5500kg	5800kg

---
