Three Phase Transformer Turns Ratio TTR Tester for Transformer Testing

Product Description

Three Phase Transformer Turns Ratio TTR Tester for Transformer testing
Production description
Product introduction

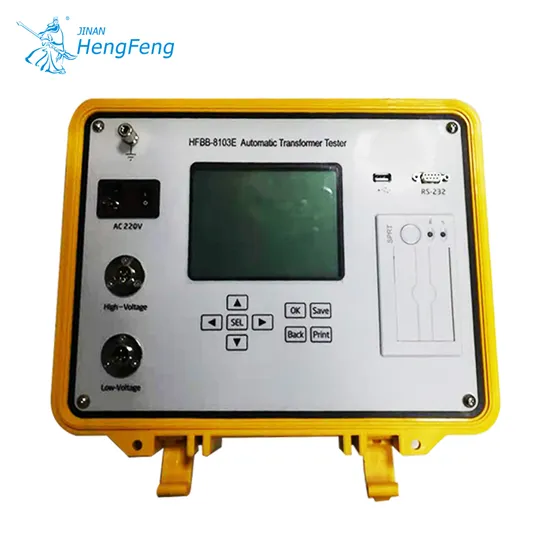

During the processing of the semi-finished products and the finished products in transformer production, the transformer newly installation before using, or according to IEC and national standard, the turns ratio or voltage ratio should be tested in the circle rate. Traditional bridge method is complicated, and can't read the data directly, and you have to make conversion, the testing results are data of one phase. Turns ratio tester of HFBB-8200E overcomes the shortcomings of traditional bridge method. The monitor adopts big screen with lattice liquid crystal, which has the function of indicating by menu, operating easily and directly. It finishes test of three-phase voltage ratio or turns ratio once, fast testing and high precise.
Features:
1.Precision inverter three-phase measuring power supply is adopted in the instrument to measure more accurately.
2.Adopt three-phase output voltage, three-phase pressure, three-phase simultaneous measurement, improve test speed, and automatically identify transformer wiring group.
3.Applicable to a wide variety of transformers, especially for the Z type transformer, rectifier transformer, grounding transformer, furnace transformer, phase shift transformer, balance transformer and other transformer measurement, measurement parameters are the most comprehensive.
4. The use of precision three-phase inverter power supply, with high and low voltage reverse polarity protection, transformer inter-turn short circuit protection, on-off tap-changer not in place protection, the output short-circuit protection, Which increases instrument stability.
5. After inputting the rated parameter, it can automatically measure the transformer ratio value, error value and on-load tap-changer position.
6. 65K true color LCD, modular liquid crystal display.
7. The device can be equipped with both print output, USB port and RS232 port, which is convenient for paperless office.
8. The use of cold and heat resistant, sealed, waterproof, anti shock and multi-function engineering plastic box, easy field test.
Technical specification

Test range	0.9~10000
Accuracy	±0.1%(below500) 0.2%(501-2000) 0.5%(2001-10000)
Resolution	Min. 0.0001
Working power supply	AC 220V±10% 50Hz
Applied temperature	-10ºC~40ºC
Relative humidity	≤85%, non-condensing
Dimension;tester	360*290*170(mm)
Weight	tester 5.9KG

FAQ
1.What is the range of turns ratio tester?
A:The test range is 0.9-10000,auto.
2.What is the warranty?
A:1 year.
3.What's the language? A:English version is ok.
4.How is the delivery? A:We use sea,air and express,we have our own forwarder, delivery time can be guaranteed.
FAQ:
1. How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
We have our own factory,we make sure to offer you the best quality with competitive price.
3. How can I pay?
We accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Normal models can be delivered with 4-7days, please contact us to check transport time to your address.
5. How to deliver?
We can send by Express, by Sea and by Air.
7.What should I do if I do not know how to use?
We provide detailed operation instructions, operation videos, and engineer's online technical support.
8.What should I do if some parts broken?
We provide a 12-month warranty period and long-term maintenance services.

---
