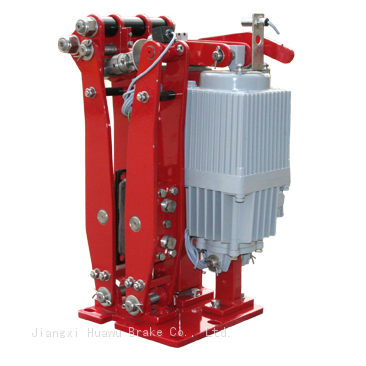

Electric hydraulic disc brake
The YP1, YP2, and YP3 series electric hydraulic disc brakes are advanced products with high performance and multiple functions. Due to their advanced features such as automatic equalization of tile clearance and automatic compensation for pad wear, they are very easy to maintain during use. By adding various limit switches, the required interlocking protection signals can be provided to the host PLC. Very suitable for deceleration and maintenance (parking) braking of various modern large-scale specialized loading and unloading machinery, lifting and transportation machinery, metallurgical equipment, mining equipment, and engineering machinery.
BASIC PARAMETER
YP1 series disc brake:
Driver model: Ed220-50、Ed300-50、Ed500-60、Ed800-60
Brake disc diameter (mm): 315, 355, 400, 450, 500
Maximum braking torque (Nm): 280~1750
YP2 series disc brake:
Driver model: Ed500-60、Ed800-60、Ed1250-60、Ed2000-60、Ed3000-60
Brake disc diameter (mm): 450, 500, 560, 630, 710
Maximum braking torque (Nm): 1000~8400
YP3 series disc brake:
Driver model: Ed1250-80、Ed2000-80、Ed1250-60、Ed3000-80
Brake disc diameter (mm): 630, 710, 800, 900, 1000, 1250
Maximum braking torque (Nm): 3750~20000
>>
