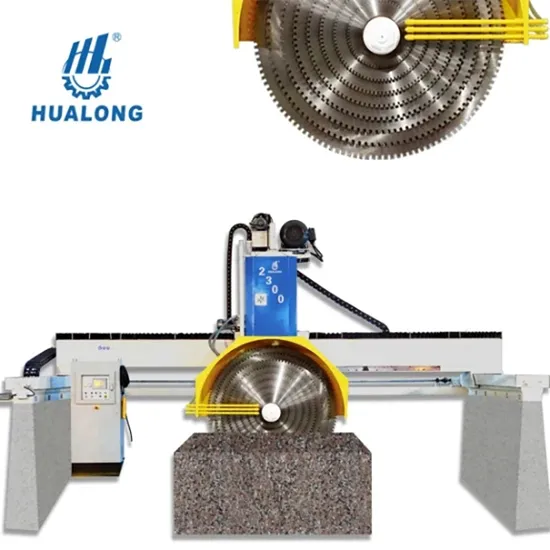

Hualong Stone Machinery Hlqy-32-1700 Heavy Duty Bridge Block Cutter Multi-Blade Stone Cutting Machine for Granite Marble in Egypt

Product Description

Product Description
Δ Machine spindle adopts 6 pillars for sliding to ensure that the structure of the machine is stable and lifting
is stable.
Δ The whole machine adopts super large crossbeam and the weight is more than 14.5t, which ensures the stable
and the firm operation of the machine.
Δ Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, to ensure high precision of cutting and long life.
Δ The electronic control adopts the configuration of Siemens system so that the machine is equipped with good stability
Quality and high automation performance.
Product Parameters

TECHNICAL DATA FOR HLQY-32-1700
Configuration	Max. blade diameter	mm	Φ1700
	Power of main motor	kw	75 (6P)
	Power of pump motor	kw	5.5
	Power of stroke motor	kw	5.5
	Power of vertical motor	kw	3
	Gross Power	kw	104
	Length of cross-beam	mm	8400 / 9860
Main Performance Parameters	Cutting length	mm	4000 / 5460
	Cutting width	mm	2400
Measurement	Gross weight	kg	33000 / 35500
	Dimension (L x W x H)	cm	8800(1026)x626x485

Main Features 1) Adopts 6 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
2) Super large crossbeam that weighs 14.5t above is used, which make the machine run firm and stable.
3) Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.
4) Siemens electronic control system is equipped for good stability and high automation performance. Detailed Photos

Machine Parts
Name: 6 big strong pilllars
Use: sliding guide for spindle
Covered by fabric for preventing pollution.
Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.
Machine Parts
Name: Circle Blade
Original: China
32 pieces of blade can be hanged for efficient production.
Electronic Control System
Brand: Siemens
Original: Germany
Famous product, equipped for good stability and high automation performance.
Customers'-Spot
Company Profile
Certifications
FAQ
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
