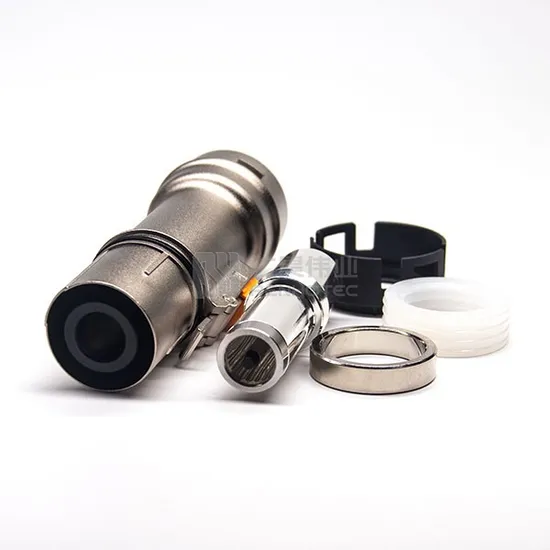

High Voltage Power Electric Connector Metal Shell Busbar Lug Socket and Straight / Right Angle EV Plug Hvil 1pin 300A 350A 400A 500A a / Y Key

Product Description

- PDU -Battery -Motor -Motor Controller





Product Description Full Series HVIL Series Connector
All types of High Voltage Connector from OEM Manufacturer in China
Excellent Electrical Insulation
Secondary buckle
Various Wire Diameter Application
Multi Misplug-proof and Key Position Design

Products Benefits
Touch Proof
360°Rotating Plug
Compactrobust Design
Various Termination Options
Three Color are available
Quick Lock and Press-to- Release Design


Products Feature

HVIL Series
Current	23A,35 / 50 ,100 / 150A / 180A / 200A / 250A / 300A / 400A / 500A
Gender	Plug / Socket
Number of Positions	1 Pin / 2Pin / 3Pin
Orientation	Straight / Right Angle
Body Material	Metal / Plastic

Renhotec All HVIL Connectors
Products Series	Rated Current	Position	Shell materials	Orientation
HVIL23	23A Max	2	PA66	Straight
		3	PA66	Straight
HVIL35	35A Max	2	Zinc Alloy	Straight
		3	Zinc Alloy	Straight
HVIL50	50A Max	2	PA66	Straight
HVIL125	125A Max	1	Zinc Alloy	Straight
		2	PA66	Straight/ Right Angle
HVIL150	150A Max	2	PA66	Straight
HVIL200	200A Max	1	Zinc Alloy	Straight/ Right Angle
		2	PA66	Straight/ Right Angle
HVIL250	250A Max	1	Zinc Alloy	Straight/ Right Angle
HVIL400	400A Max	1	Zinc Alloy	Straight/ Right Angle
HVIL500	500A Max	1	Zinc Alloy	Straight/ Right Angle

Electrical Performance	Rated Voltage 960V AC/1000V DC Rated Current 16A,35A,50A,125A,150A,200A,250A,400A,500A Withstand Voltage 3000V AC Insulation Resistance ≥500MΩ Cable Gauge 2.5-150m2
Mechanical Performance	Connection Type Terminal machine Mating Cycles >100 Shielding 360 Salt Spray MAX 96h Flammability Rating UL94 V-0 Positions 1/2/3pin
Environmental Performance	IP Degree IP67 IP6K9K(Mated) Operating Temperature -40ºC~125ºC

How to Order
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mas

---
