Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
Slant Bed CNC Turning Lathe
Max.Processing Length
300mm
Tool Post Type
Gang Tools CNC Lathe
Spindle Motor
5.5kw Servo Motor
Slant Bed
45 Degree Slant Bed CNC Lathe
Guideway
Taiwan Linear Guideway
Transport Package
Wooden Case
Specification
500mm diameter seal
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
250.00cm * 162.00cm * 189.00cm
Package Gross Weight
3000.000kg
Product Description

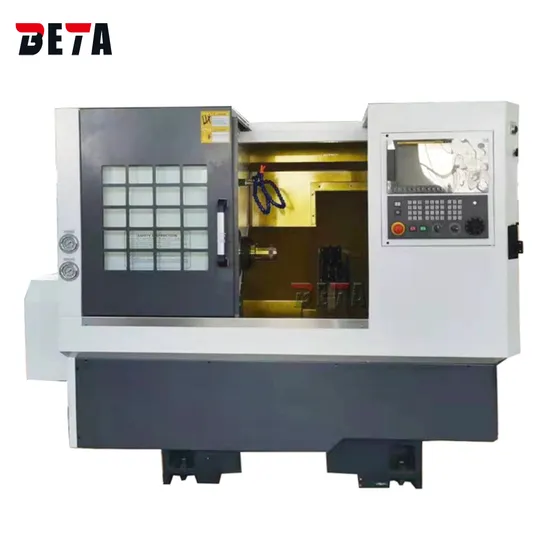

High Quality Automatic Inclined Bed TCK6350 Horizontal CNC Lathe For Sales
Standard accessories:
45 degree slant bed structure,
GSK CNC controller,
Spindle motor 5.5kw servo,
Taiwan linear guide ways,
A2-5 spindle unit 140 with maximum speed 3500rpm,
6" hollow type hydraulic collet with cylinder,
Gang type tools 4 pieces,
automatic lubrication system,
automatic cooling system,
work light
Full protection cover
Optional accessories:
Siemens/Fanuc CNC controller
Hydraulic turret
Servo Turret
Electric turret
| Model | Unit | TCK6350 |
| Max. swing over bed | mm | 520 |
| Max. swing over slide | mm | 220 |
| Max processing length | mm | 410 (gang tool) |
| Max. bar capacity | mm | 55 |
| Max. processing diameter (disc type workpiece) | mm | 500 |
| Spindle nose | - | A2-6 |
| Spindle bore | mm | 66 |
| Spindle speed | rpm | 50-3000 |
| Spindle motor power | kw | 7.5 |
| Chuck size | inch | 10 |
| X/Z-axis rapid traverse | m/min | 24/24 |
| X/Z axis servo motor torque | Nm | 7.5/7.5 |
| X/Z axis travel | mm | 500, 500 |
| Guide way type | - | linear guide way |
| Tool post type | - | gang type tools |
| Tool shank size | mm | 25x25 |
| Overall dimension | mm | 2500x1620x1890 |
| Machine weight | kg | 3000 |
| | | |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
>>
