Basic Info.
Usage
Flexo Printing, Letterpress Printing
Type
Resin Plate Making Machine
Material / Metal Processed
Stainless Steel
Classification
Inner Drum
Width
Base on Customer′s Request
Transport Package
Wooden Crate
Production Capacity
300sets/Year
Product Description
Product Description

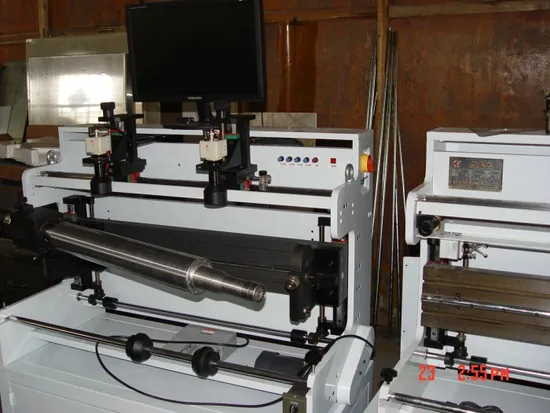

Flexo Sleeve Plastic Plate Mounting Equipment (DC-YG)
Characters: Advanced zoom fixed focus lens, high-definition CCD camera, LCD display. (Taiwan Mitron cameras, optical companies in Taiwan produced by the Asian lens, South Korea's Samsung 19-inch LCD monitor) Vertical movement of the lens beam using positive and reverse motor-driven, easy to operate, a large range of paste. Around the positioning precision linear guide, the lens up and down the level, about the use of precision screw mechanism adjustment (Taiwan on the silver precision linear guide) Camera can be adjusted in six directions, parallel adjustable, high-precision paste and registration. On the version of the use of mechanical fine-tuning platform, pneumatic fixed plate. Move the plate accurately and the baseline alignment to ensure that each version of the same position and accuracy. Cylinder stapler-type with a cylinder, compressed air to drive the thimble back and forth movement of the cylinder, easy to use. Roller circumference rotation using manual (can also be made of motor drive) rotation, the version of the circumferential position of the cylinder fixed cylinder lock, can be quickly and easily version of the roll version of the paste Special version of the roller, the plate and double-sided adhesive close, reliable and practical. Post-printing plate can be directly checking the paste version accuracy, to ensure the quality of paste version. Fast paste version, easy to operate, greatly improve work efficiency. Suitable for flexo printing such as wide flexo printing and resin printing.
Parameter:
Model | Max Length | diameter |
WG-1200 | 178-1200mm | follow cylinder's design |
