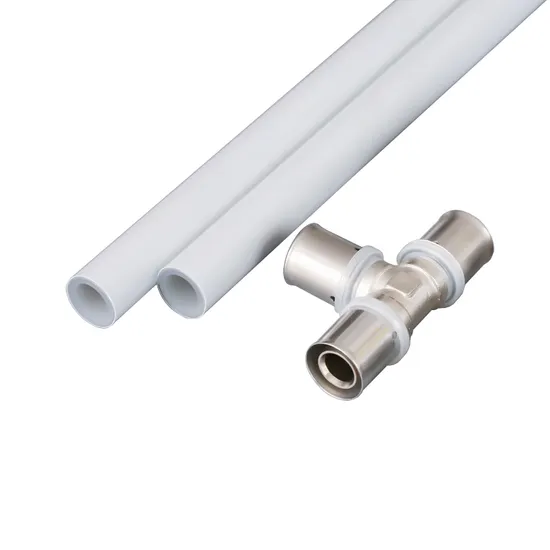

Multilayer Overlap Cross-Linked Polyethylene Pex Pipe for with Al Layer

Product Description

Product Description
PEX Al PEX Pipe PEX Al PEX Pipe is a new type of high-quality pipe material, which is composed of two layers of polyethylene (PEX) with aluminum foil sandwiched between them. It is widely used in construction and industrial fields, bringing convenience and comfort to our production and life.
Advantage:
1. Anti-leakage: PEX aluminum-plastic pipe is packed with a layer of aluminum-plastic composite material, which makes it more pressure-resistant, anti-leakage, and longer service life.
2. Both hardness and softness: the outer layer of the PEX aluminum-plastic pipe is made of a layer of aluminum-plastic composite material, which makes the pipe not only have good hardness, but also good flexibility.
3. Strong corrosion resistance: The inner wall of the PEX aluminum-plastic pipe is made of PEX material, which has the characteristics of not easy to age, corrosion resistance, etc., and has a long service life.
4. Not easy to burn: The outer layer of the PEX aluminum-plastic pipe is made of aluminum-plastic composite material, which is easy to decompose, not easy to burn, and has good safety.
5. Strong corrosion resistance: The inner and outer surfaces of PEX aluminum-plastic pipes are made of high-quality materials, which have good corrosion resistance.
6. Simple installation: PEX aluminum-plastic pipe can be installed through simple welding and joints, and it is also very convenient for maintenance and replacement.

Product Name	Pex Al Pex Pipe
Color	Natural / Customized
Working Pressure	0.86mpa-1.25mpa
Size	16-32mm
Material	Pex + Aluminium
Usage	Hot Water Supply And Heating
Performance	Good Flexibility, Easy To Bend
Certification	Iso 15875-2-2003, Gb/t 18992.2-2003
Health Guarantee	The Interior Is Smooth, Not Easy To Corrode, And Does Not Form Scale
Work Temperature	-20ºC-120ºC
Feature	Corrosion Resistant
Connection	Brass Fittings
Package	Carton +opp Bag

Material:	PEX	PEX
The type of the crosslinking	B	b
The degree of crosslinking	≥65%	≥65°	the recommended level: 75°
The granules class	≥PE80	≥PE80
The max. working temp.	95ºC	.+95°C
The min. Working temp.	'-40ºC	.-40°C
Working pressure	<1.25	≤1,25 Mpa
Bursting Strenght for +95°C	5.98 MPA	≥45 bar
Resistance to delamination	/	≥ 9 N/mm	acc. DVGW W 542 befor and after conditioning
Tensile strenght cone	2400-3320N	acc. DVGW W 542
Thermal durability	135ºC	acc. ISO 21003-2
Other requirements		acc. ISO 21003
Marking	/	acc. customer requirements, minimum: every 1 meter
Thermal conductivity	0.45W/(M.K)	0.45W/mK
Thermal Expansivity	0.025mm/(M.K)	0,025 mm/mK
Bend radius	≥5D	5xD ext.
Paking	/	acc. customer requirements

Pipe size	Outer diameter	wall thickness	aluminium thickness
16x2,0	16 +0,3	2,0 +0,13/-0,03	0,2 +0,01
20x2,0	20 +0,3	2,0 +0,13/-0,03	0,22 + 0,01
25x2,5	25 +0,3	2,5 +0,15/-0,03	0,25 +0,01
32x3,0	32 +0,3	3,0 +0,15/-0,03	0,30 +0,01

Customized products please click send inquiry to contact us
