| US$1,695.00-1,795.00 | 1 Set (MOQ) |

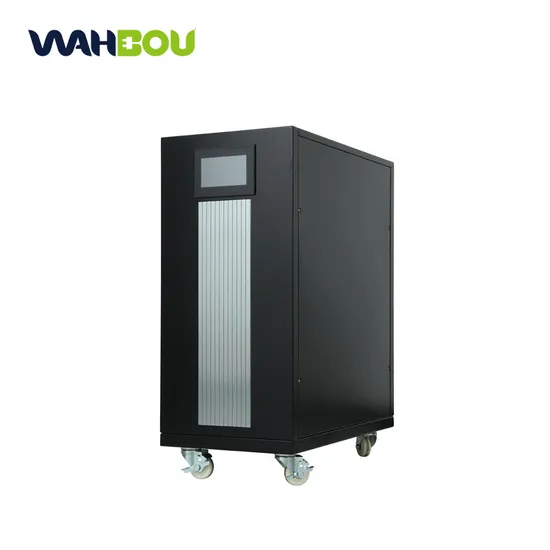

| Model | TD33 10KVA | TD33 15KVA | TD33 20KVA | TD33 30KVA | TD33 40KVA | TD33 60KVA | TD33 80KVA | TD33 100KVA | TD33 120KVA | TD33 160KVA | TD33 200KVA | TD33 250KVA | TD33 300KVA | TD33 400KVA | TD33 500KVA | |
| Rated Power | 10kVA/ 8kW | 15kVA/ 12kW | 20kVA/ 16kW | 30kVA/ 24kW | 40kVA/ 32kW | 60kVA/ 48kW | 80kVA/ 64kW | 100kVA/ 80kW | 120kVA/ 96kW | 160kVA/ 128kW | 200kVA/ 160kW | 250kVA/ 200kW | 300kVA/ 240kW | 400kVA/ 320kW | 500kVA/ 400kW | |
| Main Input | Rated Voltage and Range | 380Vac ±25% | ||||||||||||||
| Input Form | 3P4W+G | |||||||||||||||
| Frequency Range | 40Hz-70Hz (settable) | |||||||||||||||
| Bypass Input | Rated Voltage and Range | 380Vac ±25% | ||||||||||||||
| Input Form | 3P4W+G | |||||||||||||||
| Output | Rated Voltage | 380Vac ±25% (line voltage) | ||||||||||||||
| Output Form | 3P4W+G | |||||||||||||||
| Static Voltage Accuracy | ±2% | |||||||||||||||
| Dynamic Voltage Transient | ≤9% | |||||||||||||||
| Distortion of output voltage waveform | ≤3%(liner),≤8%(non-liner) | ≤3%(liner),≤5%(non-liner) | ||||||||||||||
| Power Factor | 0.8 | |||||||||||||||
| Output Frequency | 50Hz/60Hz | |||||||||||||||
| Output Overload | 105%±5%≤ Load: Overload warning; 105%±5%<Load≤125%±5%: Convert to bypass output after 2 mins; 125%±5%<Load≤150%±5%: Convert to bypass output after 30s; Load>150%±5%: Convert to bypass output after 500ms. | 110%≥30mins; 125%≥10mins; 150%≥1min | ||||||||||||||
| Battery | Rated Voltage | 192Vdc | 384Vdc | 480Vdc | 768Vdc | |||||||||||
| Dimension (LxWxH) mm | 830x455x1055 | 830x515 x1135 | 800x700x1600 | 880x850x1650 | 870x1300x1850 | 1420x908x1650 | 1630x1026 x1902 | 2100x1100 x2000 | ||||||||
| Weight | 218kg | 208kg | 208kg | 243kg | 309kg | 506.5kg | 521.5kg | 800kg | 800kg | 1099kg | 1243kg | 1200kg | 1240kg | 2600kg | 3660kg | |
