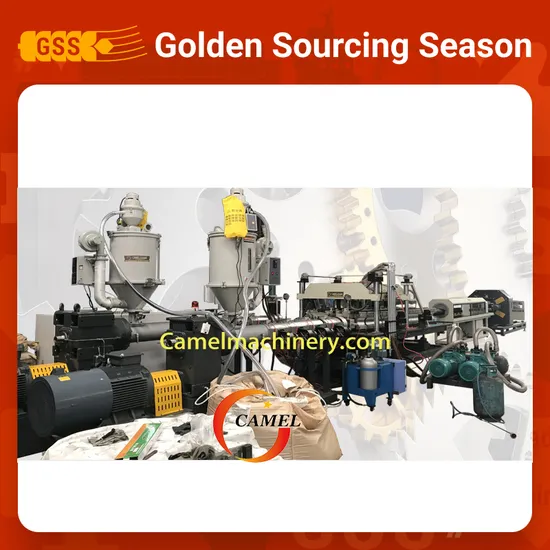

110-315mm Plastic Double Wall Corrugated Pipe Making Machine

Product Description

Product Description of Plastic Double Wall Corrugated Water Gas HDPE PP Pipe Making Machinery Extruding Extrusion Machine Product Description
Double wall corrugated pipe is mature product which has the advantage of low weight, low cost,
anti-corrosion,good ring stiffness and flexibility. Our company has developed PE double wall corrugated pipe extrusion line formore than 20 years. We have the whole series of double wall corrugated pipe machine: horizontal type, verticaltype and shuttle type. Our machine can process wide range of material, including HDPE, PP, PVC, etc.

Our double wall corrugated pipe extrusion line can produce from inner diameter of 63mm to 800mm.



Product Parameters
Techiniacal Parameter of Double Wall Corrugated Pipe machine

Model	Structure	Raw material	ID (Min.mm)	ID (Max.mm)	Speed (m/min)
SGB250	Horizontal	HDPE / pp	110	250	0.5-5.0
SGB400	Horizontal	HDPE / pp	200	400	0.5-3.5
SGB600	Vertical	HDPE / pp	250	600	0.5-3.0
SGB800	Vertical	HDPE / pp	250	800	0.3-3.0
SGB800	Shuttle	HDPE / pp	500	800	0.3-3.0

Detailed Photos
Details Images of Double Wall Corrugated Pipe machine

EXtruder .
Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and barrel for other material such PVC powder, PP powder, etc. Provide suitable extruder for different customer requirements.
Die Head and Calibration sleeve.
Both outer layer and inner layer are extruded inside die head. Each material flow channel inside die head is placed evenly. Each channel is after heat treatment and mirrorpolishing to ensure material flow smoothly. Also die head provides compressed air between both layer.Calibration sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe, ensure inner pipe roundness.


Corrugator.
Corrugator is used to place and move corrugated mould. Vacuum is created to absorb outer layer into corrugated mould to form corrugate shape. By moving corrugated mould, pipe is also pulled out from corrugator.



Cooling tank.
Cooling tank is used to cool pipe .





Cutter.
Cutter controlled by Siemens PLC, double knife cutter. Equipped with precise inspection device ensures the cutter accurately placing at the correct position of double wall corrugated pipe. Whole cutting process is accurate and fully automatic.
Company Profile
Our Company
FAQ of double wall corrugated pipe making machine
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
If you are interested in our machines, you can contact us directly and we will provide you with high-quality service and free technical support.

we can talk directly.
Company name: Zhangjiagang Camel Machinery Co.,ltd
Address: Yongli Economic development zone, LeYu town, Zhangjiagang city, Jiangsu province, China

---
