Product Description
Product Description
1
Product Description
Machine Features:

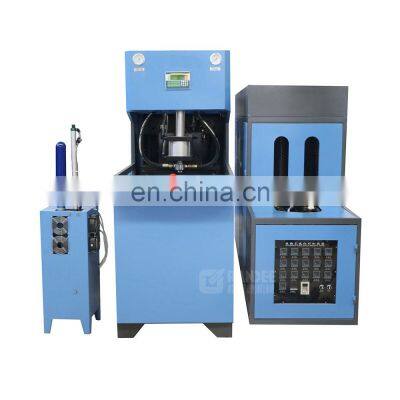

1.GD-B20L 5 gallon blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
2.Perfect function with economic investment.
3.Small size and compact construction with no space waste.
4.Easy to operate and maintain ,operation by one person .
5.Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
6.We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.
Technology advantage:
1.Special design,high rigid compound die structure
2.Wide adaptability, suitable for every type mould thickness
3.Adjust conveniently
4.No mould rolling out
5.More energy conservation,no need much air supply
6.High burnish principal axis, with very precise polishing, light action and low noise.
7.Short mould stroke,quick action
8.All casting, with long timing process,very small transformation,can meet your precise request 100%.
Main machine :
One Cavity 5 gallon bottle blowing mold
Stretching cylinder
Mould and Finished Products
High pressure compressor with 1.2m³/30KG
Main technical parameter:
Model
| GD-20BL
|
Container
| Product material
| PET
|
Volume
| 10L-25L(3-5Gallon)
|
Theoretical output
| 90-180PCS/H
|
Preform length
| 15mm-460mm
|
Preform inner diameter
| φ5mm-200mm
|
Moulding
| Max.mould plate Dimension(L x W)
| 420x500mm
|
Max.mould thickness
| 40mm
|
Clamping force
| 330KN
|
Mould opening stroke
| 38mm
|
Machine size and weight
| Main machine (L x W x H)
| 218*77*196cm
|
Main machine weight
| 1000Kg
|
Heater (L x W x H)
| 237*68*165cm
|
Heater weight
| 380Kg
|
Power
| 40kw
|
Company information
FAQ
Q1: How to find suitable plastic bottle blow moulding machine or complete water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: What's the capacity of plastic bottle moulding machine?
A2: We have full automatic and semi automatic unit with 800BPH to 2000BPH for 5000ml plastic bottle
Q3: How to choose the capacity of blowing machine for water production line?
A3: If you want 600-800BPH for 5000ml water production line, you can choose semiautomatic blowing machine or automatic one cavity blowing machine,if you want 1000-1200BPH, you can choose automatic 2 cavity blowing machine, if you want more bigger capacity, you can send me inquiry, we can give you more professional technical solutions.
Q4: Are you a trading company or a manufactory?
A4: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q4: Do you have technical support after we purchased your machines?
A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q5: If you buy our machines, can you offer us wear-out spare pats?
A5: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
