Heavy Duty 630 mm Single Double Side Surface Planer for Furniture Company

Product Description

Product Function

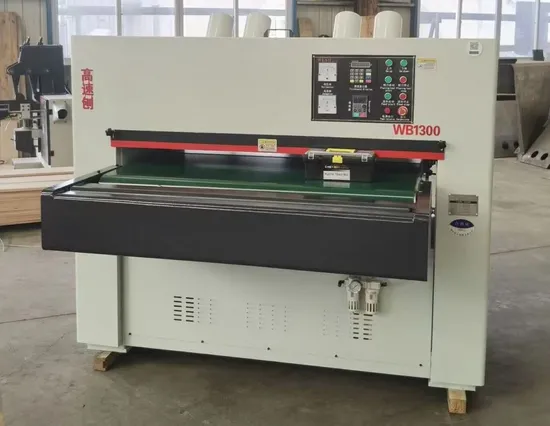

Heavy duty 450-1300 mm width single or double side planer machine
This kind heavy duty planer is designed to planing the solid wood ,mdf ,abs ,pp and other material, it usd belt conveyor ,to reduce the defect of traditional planer,and use Luxembourg ,Ceratizit ,the best planner cutter in the world ,can use 6-8 month ,max speed 30 m/min .Easy to operate and maintenance.

Product Specification

Model	Single side planer WB450	Single side planer WB630	Single side planer WB850	Single side planer WB1000
Max working width	450 mm	630 mm	850 mm	1000 mm
Max working Thickness	90-200 mm (customized)	110-200 mm (customized)	110-200 mm (customized)	110-200 mm (customized)
Min working Thickness	5mm	5 mm	5 mm	5mm
Sprial cutter spindle diameter	φ125mm	φ125mm	φ125mm	φ140-160mm
Cutter blade size	30x12x1.5mm	30x12x1.5mm	30x12x1.5mm	30x12x2.5mm
Feeding speed	0.1-30 m/min	0.1-30 m/min	0.1-30 m/min	0.1-30 m/min
Main motor	5.5kw	11kw	11-15kw	11-15kw
Feeding motor	1.1kw	1.5kw	2.2-3 kw	2.2-3 kw
lifting motor	0.37kw	0.37kw	0.37kw	0.37kw
Voltage	3 phase 380v	3 phase 380v	3 phase 380v	3 phase 380v
Dimension	1600*1300*900 mm	1800*1150*1450 mm	1800*1200*1600 mm	1800*1600*1500 mm
Weight	1160 kg	1360kg	1560kg	2100kg
Model	Single side planer WB1300	Double side planer WB450-2	Double side planer WB630-2	Double side planer WB1300-2
Max working width	1300 mm	450 mm	630 mm	1300 mm
Max working Thickness	110-450 mm (customized)	110-450 mm (customized)	110-450 mm (customized)	160-650 mm (customized)
Min working Thickness	5mm	5 mm	5 mm	5 mm
Sprial cutter spindle diameter	φ180mm	φ125mm	φ125mm	φ180mm
Cutter blade size	30x12x2.5mm	30x12x1.5mm	30x12x1.5mm	30x12x1.5mm
Feeding speed	0.1-30 m/min	0.1-30 m/min	0.1-30 m/min	0.1-20 m/min
Main motor	22-30 kw	7.5kw*2	11kw*2	22kw*2
Feeding motor	3-4 kw	1.1kw*2	1.5kw*2	2.2kw*2
lifting motor	0.55 kw	0.37kw*2	0.37kw*2	0.37kw*2
Voltage	3 phase 380v	3 phase 380v	3 phase 380v	3 phase 380v
Dimension	1600*1900*1300 mm	2600*780*1700 mm	2500*1100*1800 mm	2900*1460*1800 mm
Weight	3080kg	1960 kg	2068 kg	4600 kg

Detail Photos

Button type operation panel , simple operation,making it more convenient for user to operate ,with adjustable speed
The internal circuit board has neat wiring, stable workpieces,long service life ,strong universality and convenient operation
Heavy duty sprial cutter ,adopt Luxembourg ,Ceratizit
Conveyor motor with inverter ,max speed 0-30 m/min
