2025 Brightsail China Pin Mill Universal Grinder Pin Pulverizer Wide Chamber Pin Mill

Product Description

Brightsail China pin mill universal grinder pin pulverizer wide chamber pin mill Product Description Our BSZ pin mill machine can be used in food, pharmaceutical, chemical and other industries, mainly for pulverizing.
It is suitable for milling materials with high fat, oil or sugar into fine powder type.
For common materials, such as spices, grains, crystal materials, etc, it's very suitable.
Our high speed wide chamber contraplex pin mill is very suitable for grinding seeds spices, like mustards seeds,cumin seeds, coriander seeds,black pepper,clove,nutmeg...etc
It can also grind cocoa nibs into cocoa liquor,and grind chemicals into fine powder.
It can be used without a dust collecting system, just a single mill.
If you don't want fine powder,a singe grind motor type pin mill is also optional. (for example if you need to make 60 mesh sugar powder.)
And for singe grind motor type pin mill, to save cost, too add a cyclone can be a simple dust remove method.
To make sure big capacity,automatic grinding, discharging and dust-free production,

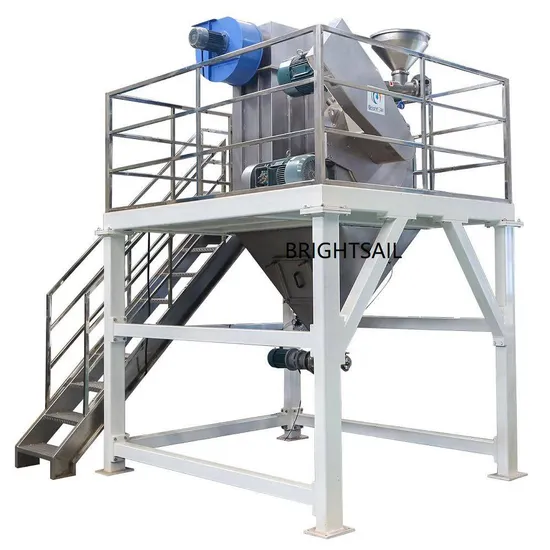

A complete pin mill grinding unit is recommended.
Besides, pin mill can also be connected with liquid nitrogen, to make powder with much fat like nutmeg.
Some clients just connect liquid nitrogen to make more quality product;
For example, with liquid nitrogen connected,food powder's smell,oil and nutrition will be preserved very well while grinding.
Technical Data:

Model (this sheet is for contraplex type pin mill)	BSZ-350	BSZ-450	BSZ-550	BSZ-630
Knife disc diameter (mm)	350	450	550	630
Capacity (kg/hr) (capacity is affected a lot by raw material and target grinding size)	60~1000	120~2000	300~3000	600~4500
Grind size (mesh)	30 ~ 1000 mesh (grind effect is affected by raw materials a lot)
Grind motor (KW)	15KW+15KW	22KW+22KW/30KW	30KW+37KW	55KW+55KW
Rotor speed (rpm) (speed is adjustable by inverter)	12000	9600	8400	6600

Company Profile
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as herb grinder machine, chemical powder mixer machine, pharmacy powder making machine... etc.
Our products can be applied in food, medicine, chemical and other industries and had won a good reputation. We provide overall powder process machines like dryer, crusher, grinder, mixer, fill and packing machines...etc
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry.
And we wish to grow up and develop together with all new and old customers.
Till 2022, we have exported machines to more than 75 countries.
Feedback After Sales Service
Packaging & Shipping
*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.*If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.

FAQ about our BSZ pin mill Q: Can the machine size be customized?
A: Yes, maybe we can. You shall tell us the room size of your factory, so we can adjust the design to fit in your space, we can try it.

Q: Can the machine's voltage be customized?
A: Yes, sure. Like 220V,400V, 480V, 600Hz....we can do it.

Q: Can the machine's voltage be customized into single phase, and family use?
A: Most machines cannot, but some machine can, please contact us to check and confirm.

Q: What is the brand of the motors, inverters and electrical parts?
A: If customers need more cost-effective machine, we will recommend good quality Chinese brand.
If customers have enough budget and want better parts, we will use Siemens,ABB,WEG...etc

---
