Product Details
Product Description
Product Description
【product applications】

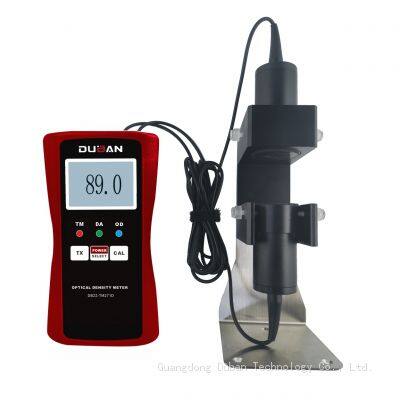

Optical densitometer is mainly used tomeasure the optical density andtransmittance values of materials, mainlyapplicable to the measurement of thefollowing three categories of materials:
* Measurement of absolute optical density,relative optical density and dot area rateof various film films
* Light transmittance of various diffusetransmission materials such as opal, fog,frosted surface
* Absolute optical density measurement ofX-ray film, aluminum film and othermaterials
【product feature】
The diffuse transmission light path is designedto meet the test requirements of fog materials.
Equipped with a fixed base and support, with two measurement methods.
Can measure light transmittance, absolute lightdensity, relative light density, dot area rate.
Suitable for film, patterned glass, mist glass,ceiling lamp cover, coating materials and otheroptical density and transmittance test.
Suitable for production, quality inspection,inspection and other occasions.
【Product Parameter】
| Transmittancemeasurementaccuracy | ±2% (1% -- 100%) |
| Optical densitymeasurementrange | 0.00 OD - 6.00 OD |
| Dot area ratemeasurementrange | 0%~100% |
| Optical densityresolution | 0.01OD |
| Transmittanceresolution | 0.1 |
| Measurementaccuracy | 0.02 (0 -- 2.00 OD)/±2% (2.00 -- 6.00 OD) |
| Optical holesize | 5mm |
| Light source | LED(D65) |
| Weight | about 985 grams (includingbattery and fixed support) |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Size | Main Unit | 140mmx76mmx32 mm |
| Sensor | 125mmxφ38 mm |
| Standard Accessories | Main Unit |
| Fixed support |
| Carrying Case(B04) |
| Operation Manual |
| Opyional Accessories | RS-232 wire |
Bluetooth,Bluetooth printer
|
>>
