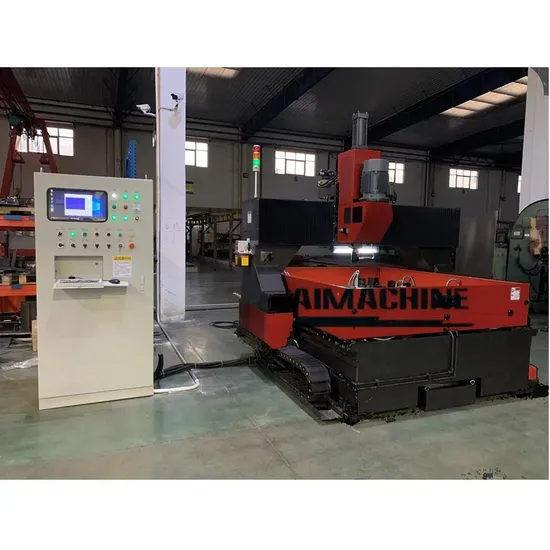

Good Quality Steel Sheet CNC Drilling Machine with 560rpm

Product Description

Product Description
Apply scope:
For steel structure, tower, bridge, mechanical processing and other industries of the connecting plate, baseboard drilling processing.
1. The bed is made of high quality gray cast iron with stable performance and no deformation.2. Spindle hydraulic feed, motor adopts deceleration motor, high efficiency and very durable.
3. Adopt hydraulic clamping system, small workpiece can be clamped at four corners of worktable, shortening production preparation period and improving production efficiency.
4. CNC system: In the Windows interface or in the AUTOCAD environment, the steel plate is programmed directly, the programming is convenient. It can be finished to make program outside the computer, then directly copy or transmit by internet into computer to save as the program.

Product Parameters

Model

PCD2012

PCD 2016

PCD 2016/2

PCD 2020

PCD2020/2

PCD3016

PCD3016/2

Machine type

Gantry movable single spindle CNC drilling machine

Max plate size (L×W)

2000×1200

2000×1600

2000×2000

3000×1600

Plate Thickness

15~100mm If work piece is small size, it can be overlapped and processed at the same time.

Clamp type

Hydraulic clamp with 12 clamps

Drill head quantity

1

1

2

1

2

1

2

Drill diameter

Φ12-Φ50mm (option: Φ12-Φ63)

Spindle speed

120~560r/min (frequency control)

Drive mode of Power head

Hydraulic driven

Clamping type

Attach Morse 4# quick chuck and 3#, 2# reducing sleeve

Electric control

With dustproof ventilating device and LENOVO computer

Electric control type

MISTUBISHI PLC

CNC axis quantity

3

With function of CAD/CAM automatic generation

with function of hole site memory (memory hole site if power off suddenly) and drill pause

Total weight(kg)

5200

7000

7500

8500

9000

9500

10000

Dimension(mm)

3160x2200x2370

3160x2400x2370

3160x2800x2370

4160x2400x2370

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing.
We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.

Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.

---
