30-500L Alkyd Resin, Polyester Resin, Polyol Pilot Reactor Plant

Product Description

We are a leading manufacturer of chemical process equipments since 1999, covering wide range of products, namely Pressure Vessel, Reactor, Blender, Heat Exchanger, Column, Condenser, Storage Tanks. We are experienced and professional in supplying chemical production line of Alkyd Resin, Polyester Resin, Acrylic Resin, PU, Epoxy Resin, Emulsion Polymer, PVA, Hot Melt Adhesive etc. Please visit our website jinzongmachinery.en.made-in-china.com and contact Henry for more information.
*Production Description
1.Reactor with jacket electric heating 100-5000 litres Reactor is the main machine for making viscous raw materials, such as resin, paint, glue, silicone oil, etc.
Applications:
1. Resin: Polyurethane resin, Polyester resin, Alkyd resin, Unsaturated polyester resin, Saturated reisn, Acrylic resin, Phenolic resin, Urea-formaldehyde resin, Epoxy resin, Amino resin, etc.
2. Paint: White latex, Water based paint, Oil based paint, Curing agent (hardener), Thinner, etc.
3. Glue: Acrylic emulsion glue, Urea-formaldehyde glue, Epoxy potting glue, Polyurethane sealant/ adhesive, Water based polyurethane, Liquid nails (Free-nail glue), etc.
4. Silicone oil: Silicone oil, Scrap silicone cracking for silicone oil, etc.
2. Model Selection Reference Of Reactor with jacket electric heating 500 litres

Specification(L)	10~10000
Design Pressure(Mpa)	Atmospheric or under pressure
Material	Carbon steel, stainless steel, enamel, graphite
Heating Forms	Electrical heating with medium in jacket, external half-pipe coil steam heating, external half-pipe conduction oil heating, hot water infrared heating.
Cooling Forms	Refrigeration medium in the internal pipe coil or jacket
Blending Power	Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.
Stirring Blade Forms	Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type.
Seal	Mechanical seal or stuff packing seal
Inner Surface Treatment	polished or no polished
Discharge Valve	Flanged ball valve open downward discharge valve and others
Technological Pipe Hole	Manhole, sight glass, distillation hole, feed material hole, pressure gauge hole, temp. hole, etc. According to the process requirements increase or decrease

3. Techincal Parameters Of Reactor with jacket electric heating 500 litres

Type	50L	100L	200L	300L	500L	1000L	1500L	2000L	3000L	4000L	5000L
Cylinder Size(mm)	450×500	450×500	600×700	750×750	900×800	1200×1000	1300×1200	1400×1500	1600×1500	1700×1800	1800×2000
Actual Capacity(L)	61	150	253	396	699	1393	2166	3000	4066	5400	6600
Jacket Capacity(L)	65	120	200	250	290	560	617	750	1015	1226	1440
Heating Area()	0.78	1.36	1.9	2.41	2.7	4.5	5.9	7	9	11	12.8
Motor Power(kw)	0.55	1.1	1.5	3	2.2	4	5.5	5.5	7.5	11	11
Rotating Speed(r/min)	85	85	85	85	85	85	85	85	63	63	63
Discharg ing Valve	DN25	DN25	DN40	DN40	DN50	DN50	DN50	DN65	DN65	DN80	DN80

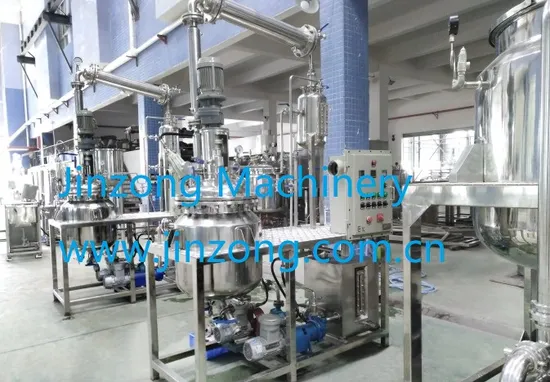

4. Pictures Of Reactor with jacket electric heating 500 litres
Agitator types
5. Packaging& Shipping
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
FOB port: Guangzhou or Shenzhen
6. Our Service
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
7. Company Information
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
8. Why Choose Jinzong Machiney?

1. More than 17 years in Cosmetic and cheimical industry
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Good reputation in industry.
4.Have a Professional after-sales service engineering team
5.Large scale and strong strength
9. Certificates:
10. Customers:

---
