Product Description
Product Description

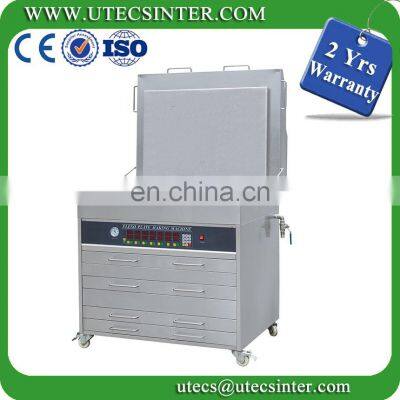

UT9060 Maquina de Revelado de Polimero flexo plate making machine
Videos
Video demonstration only for reference
Video : /watch?v=inP7Jm01Qpw
Product Description
Feature:
UT Series Photopolymer Plate Exposure Machine is mainly used for making sensitive resin plates.
1, Stainless steel exterior structure
2, Philip exposing lamps
3, Imported reflective violet suction membrane (Japan Toyo)
4, Computerized control
5, Imported American digital thermo sensor.
6, Automatic plate washing system
7, It functions exposure, plate washing and drying in one set, ideal auxiliary to flexographic printer
Parameters:
Model
| Print area
| Dimension(W*D*H)
| Power
|
UT-4030
|
400*300mm
|
580*500*1000mm
| 1.5Kw
|
UT-6040
|
600*400mm
|
860*710*1050mm
| 2.3kw
|
UT-9060
| 900*600mm
| 1190*910*1150mm
| 3.5kw
|
UT-120100
| 1200-1000mm
| 1500*1310*1160
| 3.8kw
|
Detailed Images
Our Services
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1. What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Wooden Case Loading and Transport
Steel Case Loading and Transport
