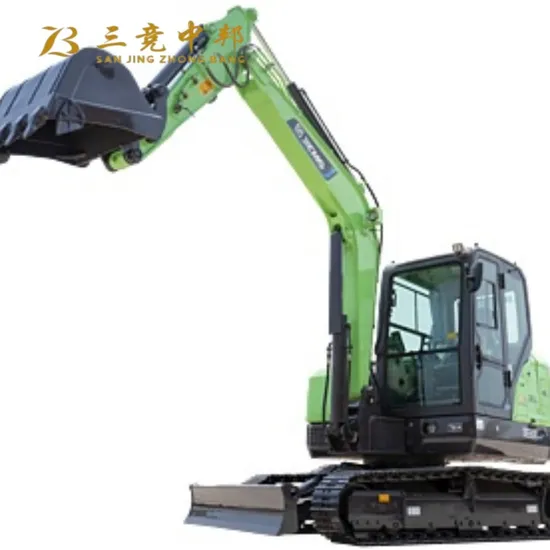

High-Efficiency 6 Ton Long Reach Excavator Xe60 Crawler Mini Hydraulic Small Excavator

Product Description

Product Parameters

Model	XE60
Overall weight	5960kg
Bucket capacity	0.25m³
Boom length	3000 mm
Arm length	1600 mm
Engine model	Yanmar 4TNV94I
No. of cylinders	4
Rated power	39.8/2200kW/rpm
Maximum torque/speed	171.5/1800 N·m/rpm
Displacement	2.615L
Fuel tank capacity	130L
Hydraulic tank capacity	85L
Engine oil capacity	9L
Total length	6010mm
Overall width	2000mm
Total height	2650mm
Turntable width	1880mm
Track length	2535mm
Track height	606mm
Overall chassis width	2000mm
Standard track plate width	400mm
Track wheelbase	1990mm
Track gauge	6001 mm
Counterweight ground clearance	700 mm
Minimum ground clearance	385mm
Minimum tail swing radius	1700mm
Maximum digging height	5630mm
Maximum unloading height	3945mm
Maximum digging depth	3830mm
Maximum vertical digging depth	2680mm
Maximum digging radius	6130mm
Minimum turning radius	2460mm
Travelling speed (high/low)	4.2/2.2km/h
Slewing speed	11r/min
Climbing capacity	≤35°
Grounding specific pressure	32.1kPa
Bucket digging force	42.5kN
Bucket bar digging force	28.5kN
Maximum traction force	50.5kN
Rated flow rate of main pump	158.4 L/min
Main safety valve pressure	24.5 MPa
Travelling system pressure	24 MPa
Slewing system pressure	24 MPa
Pilot system pressure	3.5 MPa

Detailed Photos
Product Description
With the largest battery capacity in its class, up to 105KWh high-capacity battery system, efficient battery thermal management system, support for fast and slow charging methods, can achieve fast charging 1 hour full charge, work 6-8 hours; battery system using lithium iron phosphate battery, stable and efficient, high security.
Excavator Parts
Packaging & Shipping
Related Products
Company Profile
Hunan Sanjingzhongbang Import and Export Trading Co., Ltd., located in the Longping High-tech Park of Furong District,Changsha,China(Hunan) SAN JING ZHONG BANG Free Trade Pilot Zone, is a subsidiary of Changsha Sanjingzhongbang capital of RMB 18million. The company has affiliated companies such as Machinery Equipment Co.. Ltd.. established in May 2016 with a registered Hunan Sanjingzhongbang Machinery Equipment Co..Ltd., and a branch in Saudi Arabia. It is a service-oriented company specializing in the export of new and used concrete pump trucks, concrete mixers, cranes, excavators and other construction machinery, with ultra-high pressure concrete pumps as its feature. The company also provides a full range of concrete equipment and mixing equipment leasing services.The company is committed to providing high-quality and cost-effective engineering machinery,repair services, and supporting spare parts for China and other countries. It has also cultivated a group of equipment operators and maintenance personnel who are thoughtful, communicative, responsible, and safety-conscious. Upholding the core values of "Being a good person before doing things", and relying on a sound service and technical support system, the company aims to become a trusted partner for customers both domestically and abroad.
Customers of Sanjingzhongbang from all over the world speak highly of our top quality construction machinery and equipmentas well as our unbeatable services, Our overseas service staff always hold "Serve you serve the world" to offer overseascustomers top class service and obtain high praise from them. FAQ
Q: What types of payment terms are accepted?
A: We accept various payment terms including L/C,T/T,D/P, and Western Union.Q: What certifications do your machinery products have?
A: Our machinery products come with certifications such as CE, ISO, Gost, EPA(USA), and CCC.Q: What is the delivery time of your products?
A: 7-30 days after receiving the deposit.Q: What is the minimum order quantity(MOQ)?
A: The MOQ of our products is 1 piece.

---
