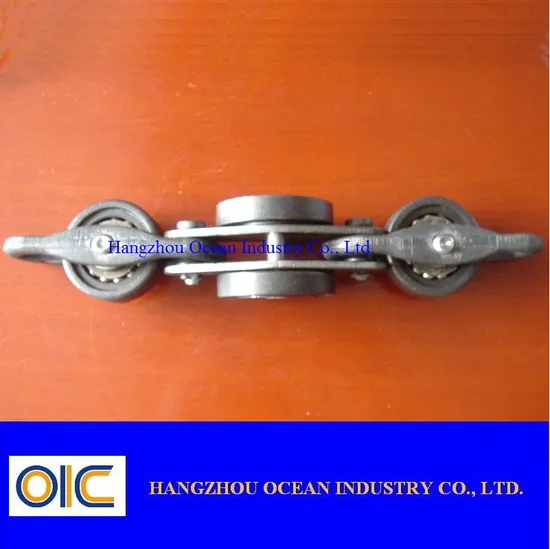

Professional Powder Coating Production Line Plant Automatic Spray Painting Line Xt Forged Overhead Conveyor Chain for Painting Line Steel Beams

Product Description

Professional Powder Coating Production Line Plant Automatic Spray Painting Line Xt Forged Overhead Conveyor Chain for Painting Line Steel Beams
Explore our wide range of conveyor chains, including drop forged chains, forged conveyor chains, suspending chains, scraper chains, detachable chains, tensioner, bent rail, cross chain, scraper chain, and more. Our products are meticulously crafted to meet various industrial needs, ensuring durability and reliability in conveyor systems. Most of our OEM customers usually send their drawings, if you have special request, send us your drawing or send us sample it is also OK.

NO MODEL	QKG-10	OXG-15OR	QKG-200A	QXG-200	QKG-24	QKG-240A	QXG-250A	QKG-3004
Pitch of chain(mm)	150	150	200	206	240	240	250	300
Single point lifting(kg)	8	8	30	30	50	50	50	50
Allowable chain tension (KN)	2.5	2.5	3	3	5	5	5	10
Chain breaking force(KN)	≥25	≥30	≥30	≥30	≥50	≥50	≥50	≥100
Weight (kg/m)	2.83	2.83	5.2	5.11	10.5	7.6	7.9	13
Track weight (kg/m)	4.36	4.36	7.18	7.18	8.12	8.12	8.12	14.6
Speed of movement (m/min)	0.26-2.6 0.52-5.2 0.87-8.7 1.21-12.1 1.51-15.1	0.18-1.8 0.25-2.5 0.36-3.6 0.51-5.1 0.62-6.2 0.88-8.8	0.18-1.8 0.25-2.5 0.36-3.6 0.51-5.1 0.62-6.2 0.88-8.8	0.15-1.5 0.4-4 0.74-7.4 1.1-11 1.4-14	0.17-1.7 0.26-2.6 0.35-3.5 0.54-5.4 0.84-8.4 1.16-11.6	0.2-2 0.28-2.8 0.414.1 0.56-5.6 0.7-7 0.97-9.7	Constant Epeed-3.9 4.4/6.0/7.3/ 8.7/9.9/11/1 3.2/15.4 0.34-3.4 0.5-5 0.7-7 1.21-11.2	0.2-2 0.3-3 0.41-4.1 0.61-6.1 1.04-10.4
Speed range	1:10	1:10	1:10	1:10	1:10	1:10	Constant speed 1:10	1:10
Working temperature( c)	-20~200	-20~200	-20~200	-20~200	-20~200	-20~200	-20~200	-20~200
Conveyor Power(KIW)	0.75,1.1	0.75,1.1	1.1,1.5	1.1,1.5	1.5,2.2	1.5,2.2	1.5,2.2	3
Remarks:1 Each of the above items can be specially designed,manufactured,and ancillary services according to customer needs including various types of drive devices)
2. When selecting the moving speed, it is best to run at the actual working speed of 0.6-0.8 times of the high end of the selectedspeed, so as to ensure a certain speed range, so as to make the speed regulating motor in good working condition.

QXG150A-12KGWeight per meter: 2.8kg
Formula Rail: 57 × 47 × 3.5mm
QXG200A-30KG
Weight per meter: 5.7kg
Formula Rail: 72 × 68 × 4mmQXG200B-30KG
Weight per meter: 6.2kg
Formula Rail: 72 × 68 × 4mmQXG206A-30KG
Weight per meter: 5.6kg
Formula Rail: 72 x 68 x 4mmQXG206B-30KG
Weight per meter: 6.1kg
Formula Rail: 72 x 68 x 4mmQXG240A-50KG
Weight per meter: 6.7kg
Formula Rail: 80 x 80 x 4mmQXG250A-50KG
Weight per meter: 6.5kg
Formula Rail: 80 x 80 x 4mmQXG250B-50KG
Weight per meter: 7.3kg
Formula Rail: 80 x 80 x 4mmQXG300A-100KG
Formula Rail: 100 x 100 x 6 (5) mm
Note: the chain plate is made of 40
manganese high strength alloy steel, and the
ball of bearing roller is filled with high
temperature grease.

MODEL ITEM	UH-5075-S Standard chain	UH-5075-HH Heavy-duty chain	UH-5075-HV Heavy-duty chain	UH-5075-HA Heavy-duty chain
Suspension Spacing (mm)	150+(150×N)	150+(150×N)	150+(150×N)	150+(150×N)
Chain's Weight (kg/m)	4.2	4.58	4.83	5.3
Single-span Weight (≤kg)	35	40	45	50
Chain's Allowed Pull Force (≤kgf	3000	3000	3000	3000
Chain's Catastrophic Pull Force (≥kgf)	5500	5500	5500	5500
Working temperature (≤ºC)	250	300	300	400
Applicable Equipment	General conditions	Large bending; High temperature	High temperature Heavy work piece Frequently lifted;	High temperature Heavy work piece Complicated route
Material	16#Medium-carbon steel,Steel A3
Remark.The above technical data is for our usual hanging type conveyors:UH-5S,UH-5HH,VH-5HA type.We can customize design and manufacture the products based customers particular requirements

Advantages:* Low noise* Less power consumption* Stable operating performance* User-friendly and safe* Excellent extensibility* Optimizes space usage* Allows for large angle bending* High mechanization & automation* Close-loop continual conveying* Compatible with ground facilities* Allows turns on horizontal and vertical planesOther Spare Parts:* Track: Straight, Bush, Vertical, Horizontal* Driver Device: Sprocket* Take up Device: Heavy Bob type* Hanger: Cross type disk, Sprocket wheel, Y type, Electroplating, U type* Other Accessories: Hanger turner, Track flange, Oil feeding cup, Oil sprayerApplication: Overhead Conveyor Chain is ideal for continual conveying in various industrial processes such as surface treatment, powder coating, paint spraying, drying, and more. It finds applications in furniture factories, bicycle plants, electronic products factories, and hardware factories.
Ocean Group Co., Ltd. is a professional group manufacturer of a full range of high-quality products including gearbox, gear, gear rack, chain, sprocket, V pulley, timing pulley, coupling, drive shaft, drop forged parts, CNC machined parts, agricultural parts and conveyor line parts. Most of Ocean Oem customers will send their drawings, some will send their sample. Ocean is pride in its capacity to develop products based on individual designs. The group's global stature is reinforced by excelent products and commitment to post-sale service, earning esteemed reputation on the international market.Ocean have extensive experience in serving customers from various regions, with our products being well-received in the American, European, South American, and Asian markets. Manufactured using modern computerized machinery, our products meet international quality standards and are designed for optimal performance.With a focus on competitive pricing, timely delivery, responsive customer service, and comprehensive after-sales support, Ocean ensure customer satisfaction at every step. Our production processes adhere to ISO9001 standards, and Ocean are capable of designing and manufacturing non-standard products to meet specific customer requirements.Quality and credibility are at the core of our business philosophy, and Ocean are committed to providing the best services and top-notch products to our customers. For more information or samples, please reach out to us, and Ocean guarantee a prompt response.
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 10 workdays.
2.Production Lead-times: 20-40 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can't find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.

---
