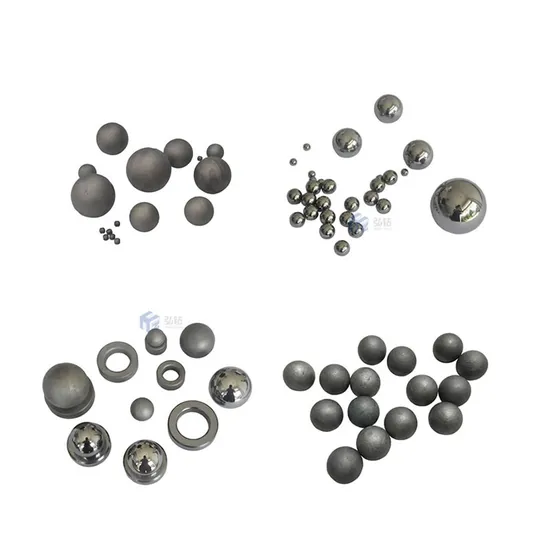

Yg6/ Yg8/ Yn6/ Yn13/ Yg6X Grinding Tungsten Carbide Balls for Ball Mill

Product Description

Product Description Tungsten carbide ball/TC alloy ball High precision tungsten carbide balls /Tungsten alloy ball Tungsten Carbide ball is mainly composed of high-hardness refractory metal carbide (WC, TiC) micron powder with cobalt (Co) or nickel (Ni), molybdenum (Mo) as binder in vacuum furnace or Sintered powder metallurgy products in hydrogen reduction furnace.
Nowadays common cemented carbides have YG, YN serials.
Grade 25
Tungsten carbide (WC): 94% Cobalt (Co): 6%
Hardness rockwell: R91 to 92.1
Density: 14.95 gm/cc
Transverse rupture strength: 400,000 to 410,000
Porosity: A02, B00, C00 (Max.)
Grain size: medium to coarse
Specification: The size of range is available from 3/32" to 2" inches, the tolerance grade is divided into G10, G25, G48, G50, G100 and so on.
The available grades and sizes are shown in the below table.

Grade	Composite	HRA(Hardness)	Density(g/cm³)	T.R.S(MPa)	Description
YG6	6% Co	91	14.6-15.0	1600	The highest wear resistance make this an excellent general purpose grade for use in pumps and valve
YG8	8% Co	89	14.4-14.8	1800	With better shock resistance than YG6, This grade is typically used as a mining grade where thoughness and abrasion resistance are also important .it has also proven useful in bearing applications
YG6X	6% Co	92	14.6-15	1850	Sub-micro alloy, high hardness and wear resistance than YG6, little lower toughness than YG8, Used in parts where high wear resistance and high toughness are required.
YG13	13% Co	90.5	14.1-14.5	1950	high toughness and hardness grade.
YN6	6% Ni	90	14.5-14.9	1450	The highest hardness and wear resistance and corrosion resistance. Used in parts where corrosive condition in high temperature are required.
YN8	8% Ni	88	14.4-14.8	1650	With higher hardness and wear resistance. Used in parts where shock resistance and corrosion are required.
YN9	9% Ni	88	14.4-14.8	1900	With higher hardness and wear resistance. Used in parts where shock resistance and corrosion are required.
YN12	12% Ni	86	14.0-14.4	1800	Higher toughness for impact load. Used in parts where better shcok and impact are required.

Detailed Photos
Applications

Packaging & Shipping
Our Factory
FAQ Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy?
1. Fill your Order List in our online Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.
Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on

---
