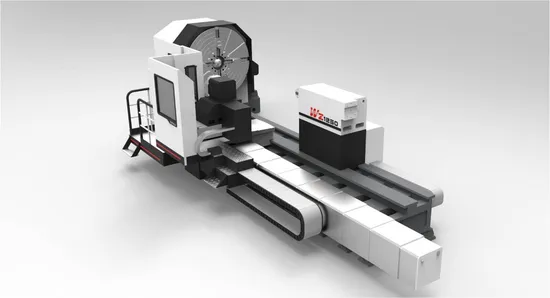

Wz CNC Heavy Duty Horizontal Lathe/Machine

Product Description

Product Description
APPLICATION
WZ series adopts modular design, with advantages of heavy load, high accuracy, efficiency and reliability, rational structure, wide application and convenience operation. Besides the basic functions of common heavy duty horizontal machine tools, it can process conical surface, curve surface, step axle groove and thread. It can also realize milling, drilling and grinding when equipped with different kinds of attachments.lt is mainly applied in industries such as energy, transportation, machinery, for machining shaft of wind power, generator, rotor of water turbine, diesel cylinder for ship, cross pin, connecting bar, cylinder rod, roller, mechanical shaft, rudder spindle, hoister and barrel of ship.
The main performance characteristics:
Headstock spindle adopts high accuracy rolling bearing at radial and axial direction. Two step mechanic speed change, AC spindle motor drive. Master and slave servo motors could be adopted for milling feeding and indexing; Tailstock adopts self-adapt mechanism of workpiece thermal extension, electric load cell and teeth plate thrust device; At lengthwise direction, carriage adopts plastic paste soft belt guideway, at crosswise direction, linear roller sliding way. Lengthwise transmission adopts double rack and pinion mechanism for clearance elimination crosswise transmission adopts double nut clearance elimination mechanism and ballscrew. Vertical. horizontal or motorized turret carriage could be adopted; Optional attachments :C type steady rest, milling tool carriage, grinding head, deep-hole boring system with large diameter, etc; Optional CNC system: SIEMENS, FANUC, REXROTH etc. Product Parameters

Item	Unit	Model
		WZ900	WZ1250	WZ1600	WZ2000
Max swing diameter	mm	1250	1600	2000	2500
Max. machining diameter over	mm	900	1250	1600	2000
Max. loading capacity between centers	t	18/25	18/25	18/25/32	18/25/32
QTY of bed guideway		3+1	4	4	4
Bed width	mm	1100	1100	1505	1705
Front bearing diameter of spindle	mm	240	240	240	240
Main motor power	kW	60/100	60/100	60/100	60/100
Spindle max torque	kNm	18-39	18-39	18-39	18-39
Max spindle speed	r/min	800	800	800	800
Spindle mechanic shift QTY	n°	2	2	2	2
Cross slide travel	mm	580	750	750	950
Y axis adjusting range	mm		±50	±50	±50
Tailstock sleeve diameter	mm	230/300	230/300	230/300	230/300
Motorized tool-motor power	kW	11 or 15	11 or 15	11 or 15	11 or 15

Detailed Photos
Workshop
Package
Installation and commissioning

---
