Product Details
Product Description
Product Description

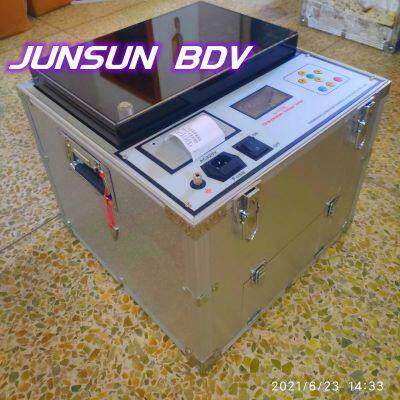

IIJ-II-100 Series Transformer Oil Breakdown Voltage Tester is specially designed for testing the breakdown voltage of transformer oil and other kinds of insulating oils.
IIJ-II-100 Series Transformer Oil Breakdown Voltage Tester adopts industrial single-chip control system, large-scale integrated circuit, new-style I/O interface, coupled with unique detection and anti-interference technology, the performance of the equipment has been greatly improved.
Breakdown voltage testing of insulating oils can help to assess the condition of these oils within electrical equipment, such as transformers, capacitors, switches, etc. Based on the test results, the oil can be identified as aged due to an increase in water content, sludge, or if the oil has oxidized.
KEY FEATURES
1. Simple operation, automatically (can be finished just press on key).
2. Menu controlled. Input data is clear.
3. Can store 99 groups of oil testing data, which is convenient to reading and print. The testing data can keep 10 years under the condition of power off.
4. System time can go on running under power off; (The system time is just for reference which cannot be the standard of timing).
5. High capacity of anti-jamming, high precision of testing.
6. Small volume, light weight, which can be operated in the open air very conveniently.
TECHNICAL DATA
1. Power supply: AC220V ± 10%， 50HZ
2. Output voltage: 80KV, 100KV
3. Capacity: 1.6KVA, 2.0KVA
4. Pressure increase speed : about 2 kva/s
5. Pressure testing speed: 3%
6. Dielectric strength sensitivity : <2KV
7. Wave form distortion : ≤3%
8. Time of dielectric strength: ≤10ms
9. Polar distance: 2.5mm
10. Operational environment: Temperature:0℃-40℃, Humidity: the most relative humidity 85%
11. Storage environment : Temperature:-20℃-40℃, Humidity: the most relative humidity 75%.
12. Working altitude: <1500m (if over 1500m can be designed specially)
13. Packing: Wooden Case
>>
