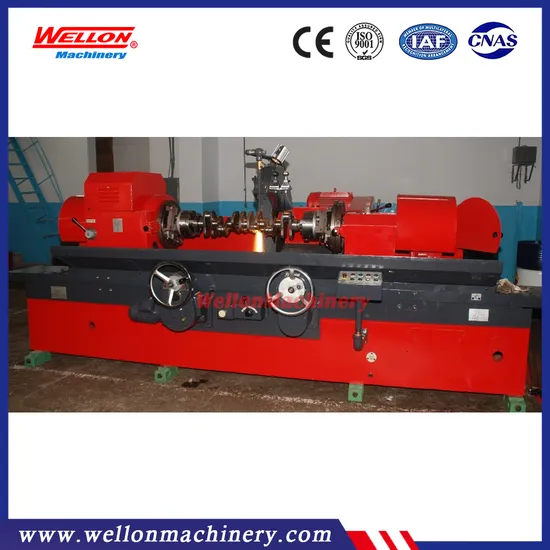

Automobile Engine Crankshaft Grinding Machine Price MQ8260A

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features: Four different work speeds are obtainable by making use of a double-speed motor and the belts in the headstock.
Union chucks are used in the headstock and tailstock for an adjustable eccentricity up to 120mm.
Friction coupling is used in the headstock transmission chain for its easy adjustment.
Table traverse is operated either by hand or by power.
Rolling guideways are used on wheelhead. And made by high quality material, the wheel spindle being of 80mm
in diameter has good rigidity and strength.
The wheel spindle being of 80mm in diameter has good rigidity and strength.
Plastic coated bed ways with less friction.
The bed ways and wheelhead ways are lubricated in automatic cycle by means of oil pump.
Additional synchronizer for headstock and tailstock, i.e. the gears of headstock drive the tailstock to run in
synchronism through the connecting spindle, thus. Four different speeds are obtainable. The length of
works is ranged from 800mm to 2000mm.
The digital display device can be optional.
Technical parameter:

Main Specifications	MQ8260A	MQ8260A	MQ8260A
Max. Work swing diameter X Max work length	600x1600mm	600x1800mm	600x2000mm
Capacity
Max. Swing over table	600mm	600mm	600mm
Work diameter ground with steady rest	30-100mm	30-100mm	50-120mm
Throw of crankshaft	110mm	110mm	120mm
Max. work length ground
In 3-jaw chuck	1400mm	1600mm	1800mm
Between centers	1600mm	1800mm	2000mm
Max. work weight	120kg	120kg	150kg
Work head
Center height	300mm	300mm	300mm
Work speed	25,45,95r/min	25,45,95r/min	30,45,65,100r/min
Wheel head
Max. Cross movement	185mm	185mm	185mm
Wheel head rapid approach and withdrawal	100mm	100mm	100mm
Wheel feed per turnoff cross fed hand wheel	1mm	1mm	1mm
Per grad. of cross feed hand wheel	0.005mm	0.005mm	0.005mm
Grinding wheel
Wheel spindle speed (2steps)	740.890r/min	740.890r/min	740.890r/min
Wheel peripheral speed	25.6-35m/sec	25.6-35m/sec	25.6-35m/sec
Wheel size (O.D. x width x Bore)	900x32x305mm	900x32x305mm	900x32x305mm
Table
Table traverse per turn of hand wheel coarse	5.88mm	5.88mm	5.88mm
Fine	1.68mm	1.68mm	1.68mm
Table Swivel (taper 18/100)	5 degree	5 degree	5 degree
Table Swivel per grad of scale (taper 1:50)	10'	10'	10'
Overall capacity of motors	9.82kw	9.82kw	11.12kw
Overall dimensions (L×W×H)	4166x2037x1584	4166x2037x1584	4900x2037x1584
Weight	Approx. 6000kg	Approx. 6200kg	Approx. 7000kg

Working Accuracy
Ovality	Cylindricity	Roughness
≤0.01mm	≤0.01mm	Ra 0.32

Main Accessories
Jaw chucks	2sets
Wheel dresser	1set
Wheel balancing arbor(Φ80)	1 set
Leveling wedge	11set
Wheel adaptor	1set
Driving dog	1set
Vertical aligning stand	1set
Horizontal aligning stand	1set

Optional Accessories (at extra cost)
Wheel Balancing stand HJX-85-04	1set
End dresser	1set
Measuring device of hanging	1set
Digital display device (wheelhead movement)	1 set
Centering device	1 set
