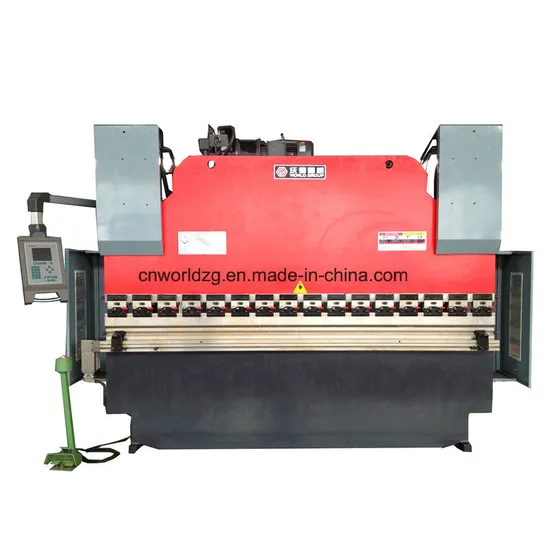

160 Tons Sheet Metal Hydraulic CNC Bending Press

US$10,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WE67K
Warranty
1-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Press Brake
Hydraulic Press Brake
Hydraulic Bending Machine
Motor Brand
Siemens
Pump
Sunny
Valve
Rexroth
Control System
Estun E21 Nc System
Color
Customized
Transport Package
in Container
Specification
bending width to 6000mm
Trademark
WORLD
Origin
China
HS Code
84622190
Production Capacity
2000PCS/Year

Product Description

160 tons sheet metal hydraulic cnc bending press
Features:
1) A fully welded steel construction with full strength and rigidity.
2) Hydraulic down-stroke construction.
3) Synchronizing mechanism of the RAM adopting torque-tube and mechanical stop unit, stable and reliable.
4) Deflection-compensating mechanism of wedge construction.
5) Power fast adjustment, manual fine adjustment and counter-showing for the RAM stroke.
6) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
Details:
Specifications
Items unit WC67Y-40/2500 WC67Y-63/2500 WC67Y-63/3200
Nominal pressure kN 400 630 630
Length of table mm 2500 2500 3200
Distance between uprights mm 1900 2000 2300
Throat depth mm 200 250 250
Ram stroke mm 110 120 120
Daylight mm 370 380 380
Approach speed mm/s 120 110 100
Bend speed mm/s 10 10 9
Return speed mm/s 100 90 90
Main motor kW 5.5 5.5 5.5
Length mm 2600 2600 3400
Width mm 1350 1380 1400
Height mm 2100 2300 2400
Items unit WC67Y-80/2500 WC67Y-80/3200 WC67Y-80/4000
Nominal pressure kN 800 800 800
Length of table mm 2500 3200 4000
Distance between uprights mm 1900 2300 1900
Throat depth mm 320 320 320
Ram stroke mm 120 120 120
Daylight mm 380 380 380
Approach speed mm/s 120 110 100
Bend speed mm/s 10 10 9
Return speed mm/s 100 100 90
Main motor kW 7.5 7.5 7.5
Length mm 2600 3400 4100
Width mm 1400 1400 1400
Height mm 2300 2300 2300
Items unit WC67Y-100/2500 WC67Y-100/3200 WC67Y-100/4000
Nominal pressure kN 1000 1000 1000
Length of table mm 2500 3200 4000
Distance between uprights mm 1900 2400 3000
Throat depth mm 300 320 320
Ram stroke mm 160 150 120
Daylight mm 380 380 380
Approach speed mm/s 120 110 100
Bend speed mm/s 10 10 9
Return speed mm/s 100 100 90
Main motor kW 7.5 7.5 7.5
Length mm 2600 3300 4000
Width mm 1600 1800 1800
Height mm 2500 2500 2300
