Polypropylene Dewatering Pusher Centrifuge

Product Description

Product Description
Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, which works both continuously and effectively. The mixture to be separated is fed through the feed pipe to the distributor continuously and evenly distributed to the wall of first stage basket. Most of the mother-liquor which is filtered by centrifugal force from the feed departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates The formed filter cake is pushed into the second stage basket as the first stage basket is rotating and reciprocating .The cake can stay in the centrifuge for a sufficient time and therefore the required Moisture content of the cake can be achieved under the powerful centrifugal force.
Afterwards, the cake is continuously discharged out of the basket. The effective washing can be carried out in the centrifuge in case of requirement of high purity of the solid product. The washing liquid and the mother-liquor can be discharged separately if necessary.
Based on the very successful Sulzer Escher Wyss design, our company has improved and developed these pusher centrifuges consistently and according to the latest requirements. Our pusher centrifuges P-40 to P-100 guarantee best solid-liquid separation with high and constant product quality in the basic, agricultural and petrochemical industries.

Zhejiang-EscherWyss Two-stage Pusher Centrifuge is China's only product manufactured under the licence and whole technology from Swiss Sulzer Escher Wyss
Model	P40	P500	P60	P85	P100
Basket diameter (inner diam in last stage basket)	360	500	630	800	1000	[mm]
Number of stages	1 - 2	1 - 2	1 - 2	1 - 2	1 - 3
Max. rotation speed	3000	2000	1900	1500	1300	[r/min]
Max. number of strokes	80	80	108	108	80	[min-1]
Hydraulic oil pressure (loading&operating)	2.5	2	8	8	8	[MPa]
El. power rotation / stroke (*required with NaCl)	15/7.5	30/15	45/22	75/45	113/53	[kw]
Operating weight (with oil filling, w/o counterweight)	2600	4400	4860	8000	12000	[kg]
*Maximum throughput in NaCl (dependent on feed conditions)	3	12	35	55	70	[t/h]
Dimensions
L	2346	3600	3200	3800	4350	[mm]
W	1090	1420	1700	2000	2300	[mm]
H1 without vibration isolation	1006	2078	1300	1550	1900	[mm]
H2 vibration isolation with concrete counterweight	1750	2200	2000	2200	2550	[mm]
H2 vibration isolation with steel counterweight	1300	1400	1550	1850	2200	[mm]
H2 vibration isolation without counterweight (with damping elements)	1280	1350	1450	1700	1890	[mm]

Main Features
*Hydraulic pusher drive for high pusher forces
*Application specific optimisation possibilities: Inlet and discharge section, sieve segments, solids discharge, product washing, etc.
*Typical products
chemicals : glaubers salt,salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
fertilisers : ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
food stuff animal feeds : extraction residues, meat pulp.
benefication : rock phosphate, gypsum, ores, coal.
Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.
Certifications

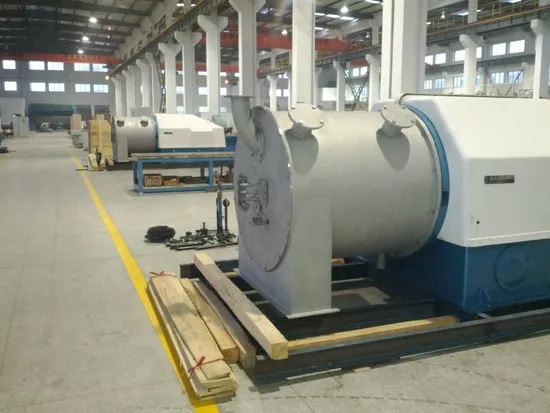

Detailed Photos
Model P40
Brand: Zhejiang-EscherWyss
Original: China
Model P50
Brand: Zhejiang-EscherWyss
Original: China
Model P60
Brand: Zhejiang-EscherWyss
Original: China
Model P85
Brand: Zhejiang-EscherWyss
Original: China
Model P100
Brand: Zhejiang-EscherWyss
Original: China
Our Product Line
Spares&our guarantee
1.INSTALLATION SUPERVISION AND COMMISSIONING:
We provide the service of installation supervision and commissioning to our clients for free
2.GUARANTEE PERIOD
20 months after commissioning, but latest 24 months after date of Bill of Loading, which ever is earlier.
3.Packing: Standard Export Package
4.SPARE PARTS SERVICE: Our inventory and careful stock management ensure continuous availability and short delivery times.

---
