China Biomass Wood Chips Tree Root Stump Crusher

Product Description

Product Description
Wood Crusher
--Wood composite crusher is mainly used for building template,wasted wood pallet,Tree bark,Slabs,off cuts,branches,straw and so on.
--Including Host,chain plate,feeding and outlet system,intelligent electrical control.
--Chain Plate Feeding conveyor feeding more freely, no need change the belt all the time.
--Reasonable structure,simple operation,high automatic level,high safety coefficient and production capacity,less manpower,easy maintenance.
--It is the ideal equipment for biomass power generation enterprises.

Model	SH800-500	SH1300-600	SH1600-600
Feeding Inlet	800*500MM	1300*600MM	1600*600MM
Blade Roll Diameter	850MM	850MM	850MM
Blade Quantity	4Pcs	4Pcs	4Pcs
Blade Roll Speed	850R/Min	850R/Min	850R/Min
Max processing wood diameter	300mm	300mm	300mm
Wood Chipper Size	20-40mm	20-40mm	20-40mm
Production Capacity	8-10Ton/hour	12-15Ton/hour	25-30Ton/houy
Main Power	110KW/220HP	160KW/400HP	250KW/400HP
Feed Motor	11KW+7.5KW	11KW+7.5KW	15KW+11KW
First Outlet Motor	5.5KW	5.5KW	7.5KW
Second Outlet Motor	5.5KW	5.5KW	7.5KW
Outlet Conveyor Length	10M	10M	10
Host Start Model	Soft Start	Soft Start	Soft Start

Electric Wood Chipper
Diesel Wood Chipper
Wood Chipper

Model	SH216	SH218
Blade Roll Diameter	600mm	800mm
Roller Speed	650RPM	650RPM
T8 Blade Quantity	2	2
T8 Bottom Blade Quantity	1	1
Feeding Inlet	240*540mm	310*680mm
Production Capacity	5-6Ton/hour	8-9Ton/hour
Main Motor Power	55kw	110kw
Feed Roll Motor Power	3kw*1,4kw*1	3kw*1,4kw*1
Outlet Motor Power	3kw	3kw
Oil Pump Motor Powet	1.5kw	1.5kw
Feeding Conveyor	550mm*6meter	550mm*6meter
Outlet Conveyor	600mm*10meter	600mm*10meter

Drum Chipper
Disc Chipper

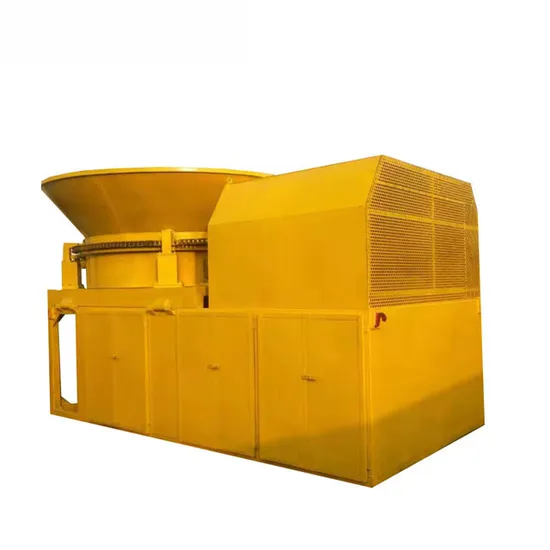

Tree Stump Crusher

Model	SH3600-1600
Blade Quantity	4
Feeding Inlet Diameter	3600MM
Blade Shaft Size	1600*850MM
Production Capacity	25-30 TONS/Hour
Motor Power	185KW
Outlet Conveyor	12 *1.2Meters
