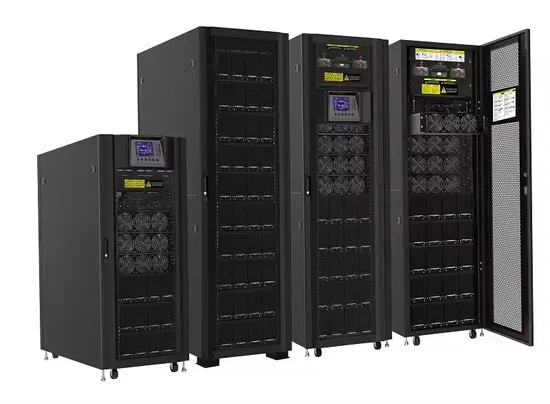

China Factory Customized All-in-One Backup Modular UPS with LCD 90K/120K/180K/210K/300kVA

Product Description

Product Description Highly flexible and extendable
Battery can choose
1. Battery voltage can be choice depend on capacity , can satisfy different requirement.
2. Convenience to get more back up time and lower system invests
3. Convenience to save cost of battery
4. Intelligent battery monitors Charge current can be adjust
5. Standant charge current 4A
6. Support more discharge time and more capacity battery for 8A charger
Input topology design
7. Support three phase input or single phase input for three phase UPS
8. Super wide input voltage and frequency range suitable for bad power electirc environment
9. Digital control DSP technology and best power component make the system safe and reliable
Multifunction friendly design
Advanced parallel technology
1. Stable parallel control technology make sure current sharing to 1%
2. Select trip technology can avoid and isolation system fault then improved system availability
3. Flexible extension capacity and redundance management that can satisfy all kinds of requirements
4. Support maximum 3 units for parallel working
Flexible strategy
5. On line mode provides higher system availability
6. High efficiency mode provides more economic operation
7. Frequency conversion provides more stable output

Detailed Photos

Product Parameters

Capacity	650VA/360W
INPUT
Voltage	110/120 VAC or 220/230/240 VAC
Voltage Range	81-145 VAC or 162-290 VAC
Frequency Range	60/50Hz (Auto sensing)
OUTPUT
Voltage	110/120 VAC or 220/230/240 VAC
AC Voltage Regulation(Bat Mode)	±10%
Frequency Range(Bat Mode)	60Hz or 50Hz ± 1Hz
Transfer Time	Typical 2-6ms
Waveform(Bat Mode)	Simulated sine wave
Peak Efficiency(AC Mode)	>95%@ Full R load
BATTERY
Battery Type & Number	12V 7Ah*1
Floating Charging Voltage	13.7VDC
Charging Ability	4-6 hours recover to 90%capacity
PROTECTION
Full Protection	Short circuit, Overload,Battery discharge and overcharge,Surge protection
INDICATIONS
Line Mode	Green lighting
Battery Mode	Yellow flashing
Fault	Red lighting
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 seconds
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
COMMUNICATIONS
USB/RS232/SNMP(options)	Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8 Linux Unix and MAC
ENVIRONMENT
Humidity	0-90% Relative Humidity 0-40°C (Non-Condensing)
Noise Level	Less than 40dB
Dimension	297*101*142mm
Net Weight	4.2KG

---
